| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,424 pcs
|
11424 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

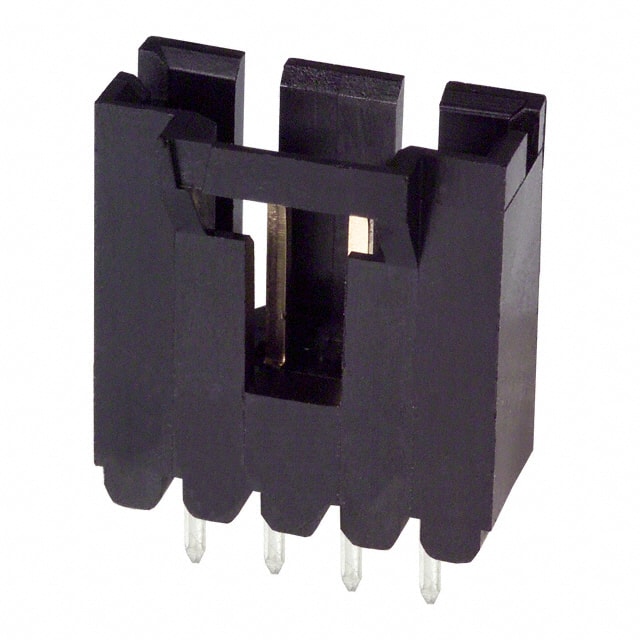

The TE Connectivity 5-103735-3 is a 4 position single row shrouded header designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and through hole solder termination. The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating. Contacts are made of brass with a tin finish (30.0µin thickness) and have a square shape. The insulation is black thermoplastic rated UL94 V-0. Electrical rating is 3A continuous current, with an operating temperature range of -65°C to 105°C. A keying slot is included for polarization. This connector is suitable for a wide range of industrial and consumer electronic applications requiring reliable, polarized connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.56 | $1.56 |
| 10+ | $1.43 | $1.43 |
| 25+ | $0.99 | $0.99 |
| 84+ | $0.94 | $0.94 |
| 252+ | $0.89 | $0.89 |
| 504+ | $0.84 | $0.84 |
| 1,008+ | $0.79 | $0.79 |
| 2,520+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 4 positions in a single row.
The pitch is 2.54mm (0.100").
The current rating is 3A.
It is a through hole mount with solder termination.
The operating temperature range is -65°C to 105°C.
The insulation material has a UL94 V-0 flammability rating.
Yes, it includes a keying slot for polarization.
