| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
832 pcs
|
832 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA | |
| Centerline | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Plating Material | |
| Contact Mating Area Plating Thickness | |
| Contact Retention | |
| Contact Shape | |
| Contact Termination Area Plating Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Header Type | |
| Height | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Material Flammability Rating | |
| Mating Alignment | |
| Mating Post Length | |
| Mating Retention | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| PCB Mounting Style | |
| Pitch | |
| Row-to-Row Spacing | |
| Shrouding | |
| Style | |
| Tail Length | |
| Tape & Reel | |
| Termination | |
| Termination Method to Wire & Cable | |
| Termination Resistance | |
| UL Flammability |

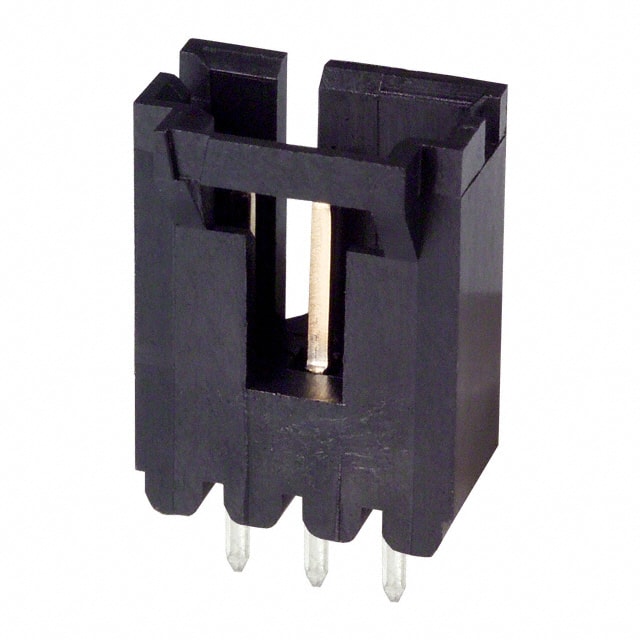

The TE Connectivity 5-103735-2 is a 3-position, single-row shrouded header from the AMPMODU MTE series. It features a 2.54mm pitch and a vertical through-hole mounting style with solder termination. The header uses a 4-wall shrouded design with a latch holder for secure mating and a keying slot for alignment.
Electrical characteristics include a 3A current rating, 600V dielectric withstanding voltage, and 5000MΩ insulation resistance. The contact mating area is plated with gold over a 0.76µm thickness, while the termination area is plated with tin for reliable soldering. The square pin contacts are made of brass and have an overall contact length of 13.84mm.
The housing is molded from black UL94 V-0 rated thermoplastic, suitable for operating temperatures from -65°C to 105°C. This connector is designed for board-to-board or cable-to-board applications and can be terminated using crimp or IDC methods.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.13 | $1.13 |
| 10+ | $1.07 | $1.07 |
| 25+ | $0.78 | $0.78 |
| 106+ | $0.76 | $0.76 |
| 265+ | $0.71 | $0.71 |
| 530+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54mm.
3A.
600V.
Through hole.
-65°C to 105°C.
Gold on mating area, tin on termination area.
