| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,120 pcs
|
8120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

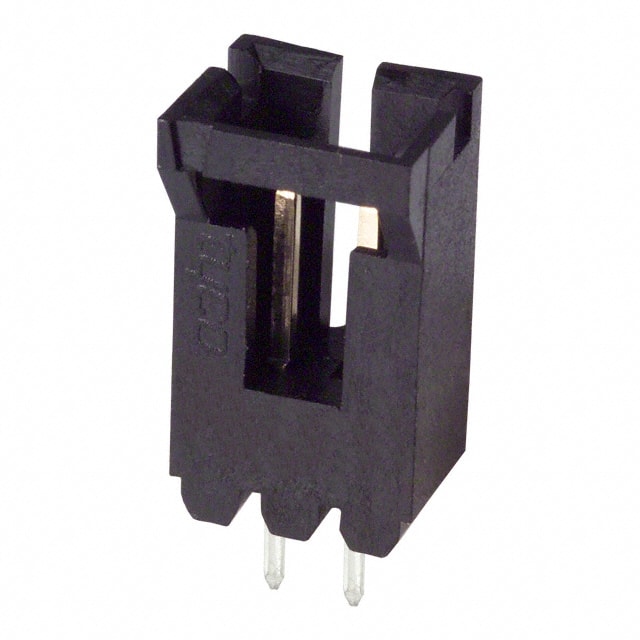

The TE Connectivity 5-103735-1 is a 2 position, single row, shrouded header designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and through hole solder termination. The header is fully shrouded with a 4-wall design and includes a keying slot for polarization.
The contacts are made of brass with a tin finish (30.0µin thickness) and have a square shape. The overall contact length is 0.545" (13.84mm) with a mating contact length of 5.84mm (0.230"). The insulation is black thermoplastic rated UL94 V-0, and the insulation height is 13.60mm (0.535").
This connector is rated for 3A current and operates over a temperature range of -65°C to 105°C. It is suitable for use in a variety of electronic interconnect applications requiring a reliable, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
| 10+ | $1.23 | $1.23 |
| 25+ | $0.83 | $0.83 |
| 71+ | $0.78 | $0.78 |
| 284+ | $0.73 | $0.73 |
| 568+ | $0.68 | $0.68 |
| 1,065+ | $0.65 | $0.65 |
| 2,556+ | $0.64 | $0.64 |
| 5,041+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 2 positions in a single row.
The current rating is 3A.
Through hole with solder termination.
-65°C to 105°C.
Tin with a thickness of 30.0µin (0.76µm).
Yes, it is a shrouded 4-wall design with a keying slot.
