| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,183 pcs
|
2183 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,718 pcs
|
1718 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Finish Thickness - Mating | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Length - Post | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

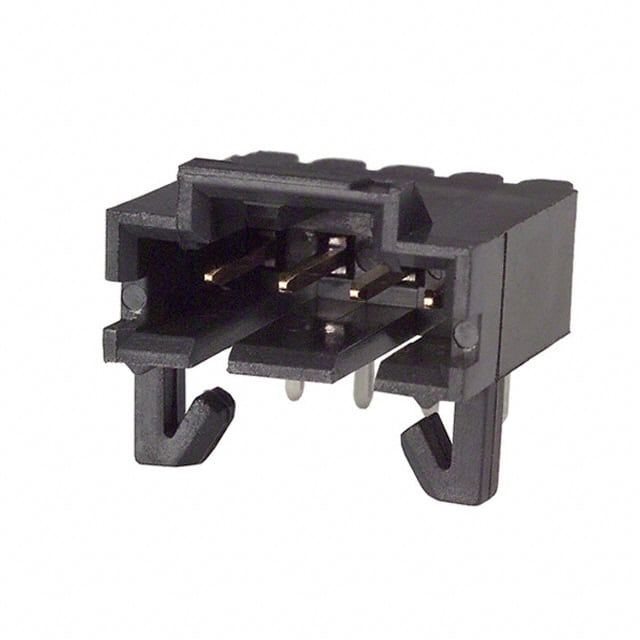

The TE Connectivity 5-103673-3 is a fully shrouded header with 4 positions and a 2.54mm pitch. It is designed for through-hole, right-angle mounting and utilizes a solder termination.
The header features male pin contacts made of brass with gold plating on the mating surfaces and tin plating on the posts. The insulation is black thermoplastic with a height of 5.08mm. Key mechanical features include board lock and a keying slot, with a latch holder for fastening.
Electrically, this header has a current rating of 3A. It is rated for a dielectric withstanding voltage of 600V and has a typical termination resistance of 15 mΩ. The operating temperature range is -65°C to 105°C.
This component is suitable for various applications including automotive, general purpose, medical, and telecommunications. It meets UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
| 42+ | $0.97 | $0.97 |
| 126+ | $0.90 | $0.90 |
| 504+ | $0.82 | $0.82 |
| 1,008+ | $0.78 | $0.78 |
| 5,040+ | $0.70 | $0.70 |
| 10,038+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 4 positions.
The current rating is 3A.
It uses Through Hole, Right Angle mounting.
The operating temperature is -65°C to 105°C.
The insulation material is Thermoplastic and it has a UL94 V-0 flammability rating.
It is suitable for Automotive, General Purpose, Medical, and Telecommunications applications.
