Mfr Part #:

5-103672-5

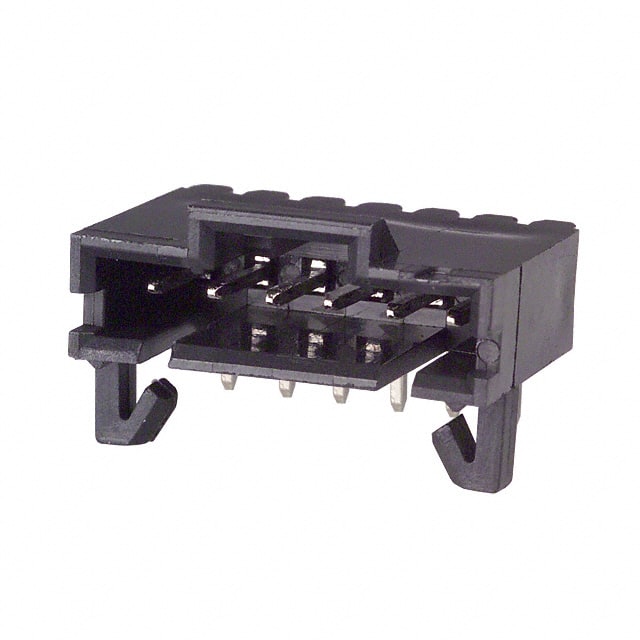

TE Connectivity 5-103672-5 is a 6-position single row right angle shrouded header with a 2.54mm pitch and solder termination. Features a latch holder for secure mating and tin-plated square brass contacts.

✓ Total Stock: 14 pcs

$ Price Range: $0.80 - $1.65

5-103672-5 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	14 pcs On Request	14 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5-103672-5 Description

Short technical summary and product information.

TE Connectivity 5-103672-5 is a 6-position, single row male pin header with a 2.54mm (0.100") pitch. The connector features a fully shrouded 4-wall design with a latch holder for secure mating to board-to-board or cable applications. Contacts are square brass pins with a full tin finish over a thickness of 100.0µin (2.54µm).

This header is mounted through-hole in a right angle orientation and terminates with solder. The black thermoplastic insulator has a flammability rating of UL94 V-0, ensuring reliable performance in demanding environments. Additional design features include a board lock and keying slot for proper alignment and retention during assembly.

Rated for 3A current and an operating temperature range of -65°C to 105°C, this connector is suitable for a wide range of industrial and commercial applications requiring a durable, polarized connection.

5-103672-5 Quick Information

Product Type: Shrouded Header

Series: Latching HDR Shrd

Canonical Name: TE Connectivity 5-103672-5, 6 Position Single Row Right Angle Shrouded Header, 2.54mm Pitch, Solder Termination

Subcategory: Shrouded, Right Angle

5-103672-5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5-103672-5 Estimated Pricing

Qty	Low	High
1+	$1.65	$1.65
10+	$1.52	$1.52
30+	$0.94	$0.94
120+	$0.90	$0.90
270+	$0.88	$0.88
510+	$0.83	$0.83
1,020+	$0.81	$0.81
2,520+	$0.80	$0.80
5,010+	$0.80	$0.80

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-103672-5 Features

Six positions loaded in a single row.
2.54mm pitch for standard spacing.
Shrouded 4-wall design with latch holder.
Rated for 3A continuous current.
Operating temperature range -65°C to 105°C.

5-103672-5 Applications

Board-to-board connections requiring a secure latch.
Cable-to-board interfaces in control systems.
Industrial equipment with right angle wiring.
Applications needing polarization and keying.

5-103672-5 FAQs

4 frequently asked questions generated from this part’s specifications.

How many positions does the 5-103672-5 header have?

6 positions, all loaded, in a single row.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating for TE 5-103672-5?

3A.

What mounting type does this header use?

Through hole, right angle with solder termination.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	100.0µin (2.54µm)
Contact Length	5.84mm (0.230")
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Latch Holder
Features	Board Lock, Keying Slot
Insulation Color	Black
Insulation Height	5.08mm (0.200")
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-65°C ~ 105°C
Pitch	2.54mm (0.100")
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
