| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,505 pcs
|
3505 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

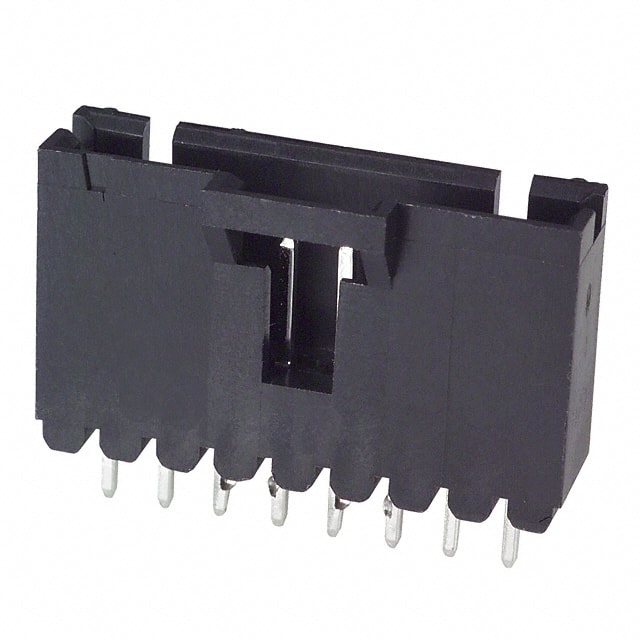

The TE Connectivity 5-103669-7 is a 8 position, single row, shrouded header designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and through hole mounting with both press-fit and solder termination options. The header is fully loaded with all 8 positions populated and includes a latch holder fastening type for secure mating.
The male pin contacts are made of brass with a tin finish (100.0µin thickness) and have a square contact shape. The insulation is black thermoplastic rated UL94 V-0, with a height of 13.60mm. The overall contact length is 0.545" (13.84mm) with a contact length of 5.84mm. A keying slot feature ensures correct orientation during assembly.
Electrical rating is 3A with an operating temperature range of -65°C to 105°C. The component is RoHS3 compliant and has an MSL of 1 (unlimited). This header is suitable for a variety of interconnection needs requiring a reliable, shrouded connector interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
| 10+ | $1.22 | $1.22 |
| 23+ | $1.18 | $1.18 |
| 115+ | $1.11 | $1.11 |
| 253+ | $1.01 | $1.01 |
| 506+ | $0.95 | $0.95 |
| 1,012+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5-103669-7 has 8 positions in a single row, all loaded.
The pitch is 2.54mm (0.100").
The current rating is 3A.
Through hole mounting with press-fit and solder termination.
-65°C to 105°C.
Yes, it is shrouded with 4 walls and includes a keying slot.
Tin finish with 100.0µin (2.54µm) thickness on brass contacts.
