| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,184 pcs
|
2184 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | 0932 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Application | |
| Connector Length | |
| Connector System | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Header Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Alignment | |
| Mating Retention | |
| Mating Retention Type | |
| Mating Square Post Dimension | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| PCB Thickness Recommended | |
| Pitch | |
| Sealable | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Post & Tail Length | |
| Termination Resistance | |
| Termination Style |

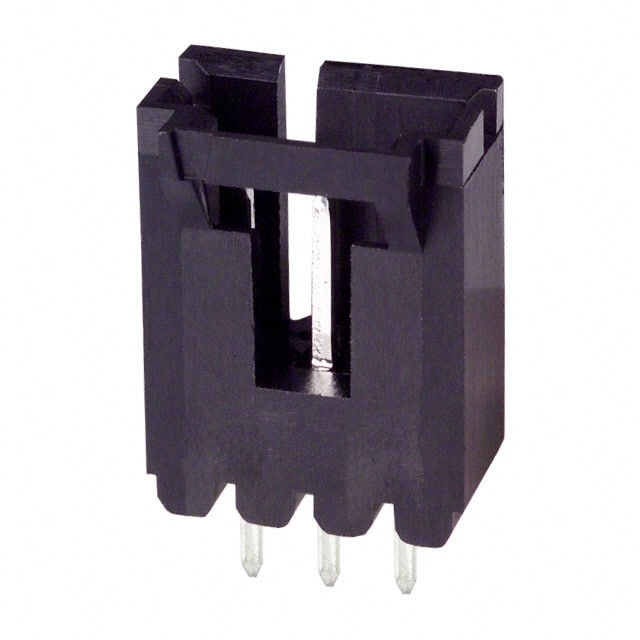

The 5-103639-2 is a PCB mount header from TE Connectivity's AMPMODU MTE series. It is a vertical, through-hole connector with 3 male pin contacts arranged in a single row on a 2.54mm pitch. The header is fully shrouded with a 4-wall design and includes a latch holder for mating retention and keying slot for polarization. It is designed for wire-to-board applications and can also be used for board-to-board or cable connections. Electrical specifications include a current rating of 3A, insulation resistance of 5000 MΩ, and dielectric withstanding voltage of 600V. The contact material is brass with tin plating, and the insulation is black thermoplastic with UL94 V-0 flammability rating. Operating temperature range is -65°C to 105°C. The header has a mating square post dimension of 0.64mm and overall contact length of 13.84mm. It is suitable for signal circuit applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.30 | $1.30 |
| 10+ | $1.21 | $1.21 |
| 25+ | $0.78 | $0.78 |
| 106+ | $0.75 | $0.75 |
| 265+ | $0.72 | $0.72 |
| 530+ | $0.68 | $0.68 |
| 1,007+ | $0.64 | $0.64 |
| 2,544+ | $0.64 | $0.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54 mm.
3 A.
Dielectric withstanding voltage is 600 V.
Through hole soldering.
-65°C to 105°C.
Brass contacts with tin plating.
