| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,040 pcs
|
5040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector System | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Method |

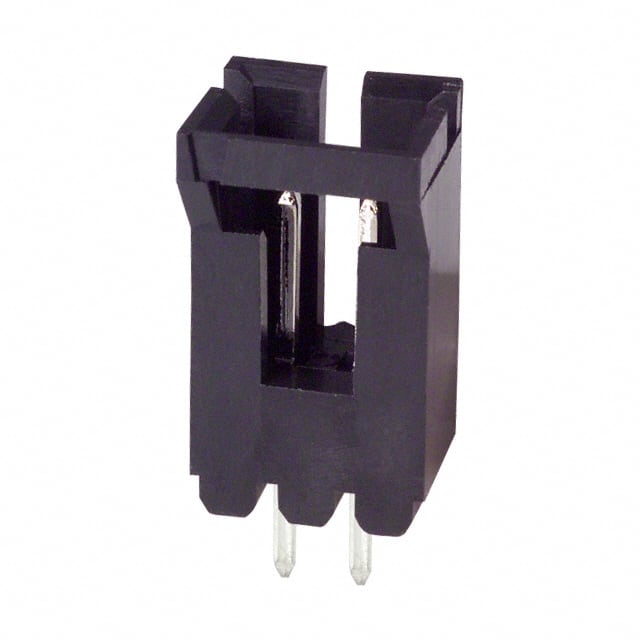

The TE Connectivity AMPMODU MTE 5-103639-1 is a 2-position, single-row, 2.54mm pitch PCB header designed for wire-to-board and board-to-board applications. It features a fully shrouded 4-wall design with a latch holder for secure mating and a keying slot for alignment.
Electrical specifications include a current rating of 3A, maximum dielectric withstanding voltage of 600V, termination resistance of 15mΩ, and insulation resistance of 5000MΩ. The contacts are made of brass with a matte tin plating finish, and the insulation is thermoplastic with a UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C.
The header is through-hole mounted with solder termination, vertical orientation, and a recommended PCB thickness of 1.57mm. The overall contact length is 13.84mm, with a mating square post dimension of 0.64mm. This connector is suitable for compact designs requiring reliable, high-density connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.06 | $1.06 |
| 10+ | $0.99 | $0.99 |
| 25+ | $0.78 | $0.78 |
| 71+ | $0.78 | $0.78 |
| 284+ | $0.70 | $0.70 |
| 568+ | $0.65 | $0.65 |
| 1,065+ | $0.61 | $0.61 |
| 2,556+ | $0.60 | $0.60 |
| 5,041+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
2.54mm.
3A.
600V dielectric withstanding voltage.
Through hole with solder termination.
-65°C to 105°C.
Thermoplastic with UL94 V-0 flammability rating.
