| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,064 pcs
|
1064 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

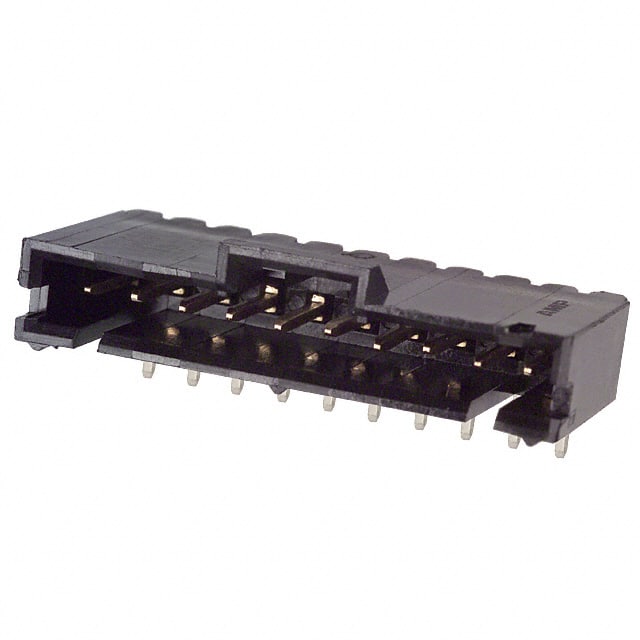

The TE Connectivity 5-103635-9 is a 10-position, single-row, shrouded header designed for board-to-board or cable applications. It features male square pins with a 2.54mm (0.100") pitch and a through hole, right angle mounting style for solder termination.
The connector is fully shrouded with a 4-wall design and includes a latch holder for secure mating. The insulation is black thermoplastic rated UL94 V-0, and the contacts are brass with a tin finish (15.0µin). The operating temperature range is -65°C to 105°C, and the current rating is 3A. A keying slot is provided for polarization.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
| 10+ | $1.40 | $1.40 |
| 19+ | $1.31 | $1.31 |
| 114+ | $1.27 | $1.27 |
| 1,007+ | $1.22 | $1.22 |
| 2,508+ | $1.04 | $1.04 |
| 5,016+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5-103635-9 has 10 positions, all loaded, in a single row.
The pitch is 2.54mm (0.100").
The current rating is 3A.
It uses through hole, right angle mounting with solder termination.
Yes, it is fully shrouded with a 4-wall design and includes a latch holder.
The operating temperature range is -65°C to 105°C.
The contact finish is tin with a thickness of 15.0µin (0.38µm).
