| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

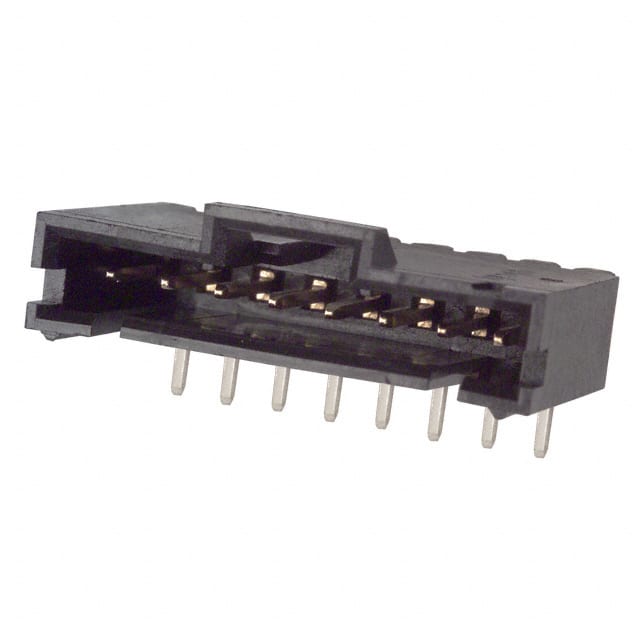

This TE Connectivity 5-103635-7 is a 8-position single row male pin header with a 2.54mm pitch. It features a shrouded 4-wall design with a latch holder for secure mating and a keying slot for orientation. The contacts are made of brass with a tin finish (15µin) and are rated for 3A. The insulation is black thermoplastic with a UL94 V-0 flammability rating.
The header is configured for through hole, right angle mounting, making it suitable for board-to-board or cable-to-board applications. The operating temperature range is -65°C to 105°C. The contact length is 5.84mm and insulation height is 5.08mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.71 | $1.71 |
| 10+ | $1.26 | $1.26 |
| 23+ | $1.21 | $1.21 |
| 115+ | $1.15 | $1.15 |
| 253+ | $1.05 | $1.05 |
| 506+ | $1.00 | $1.00 |
| 1,012+ | $0.92 | $0.92 |
| 2,507+ | $0.92 | $0.92 |
| 5,014+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.54mm.
3A.
Through Hole, Right Angle.
-65°C to 105°C.
Brass.
Tin.
