| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,940 pcs
|
2940 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 0803 | On Request | 2026-05-08 04:16:43 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

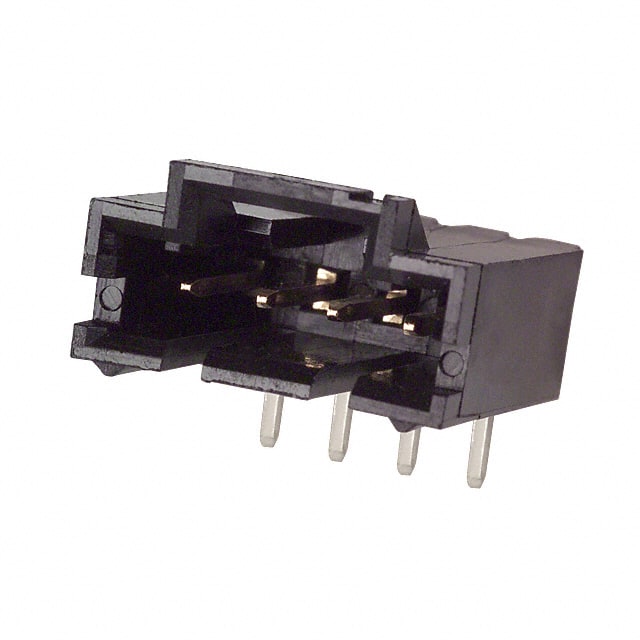

The TE Connectivity 5-103635-3 is a 4-position, single-row, shrouded header (4-wall) designed for board-to-board or cable connections. It features male square pins with tin plating (15.0µin) over brass contact material. The connector uses a push-pull fastening type with latch holder and includes a keying slot for correct orientation.
Electrical rating is 3A with an operating temperature range of -65°C to 105°C. The header is through hole right angle mounted and terminated by solder. The black thermoplastic insulator has a flammability rating of UL94 V-0. Contact length is 5.84mm and insulation height is 5.08mm.
This component is suitable for applications requiring secure and reliable interconnections within the given electrical and environmental limits. The shrouded design protects pins during mating and unmating. The 2.54mm (0.100 inch) pitch is industry standard and compatible with many mating connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.34 | $1.34 |
| 10+ | $1.26 | $1.26 |
| 25+ | $0.91 | $0.91 |
| 84+ | $0.87 | $0.87 |
| 252+ | $0.87 | $0.87 |
| 504+ | $0.82 | $0.82 |
| 1,008+ | $0.77 | $0.77 |
| 2,520+ | $0.76 | $0.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.54mm (0.100")
4 positions, all loaded in a single row.
3A.
Through hole, right angle with solder termination.
-65°C to 105°C.
Tin, 15.0µin (0.38µm).
Yes, it has a 4-wall shroud with a latch holder.
