| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
840 pcs
|
840 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
510 pcs
|
510 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

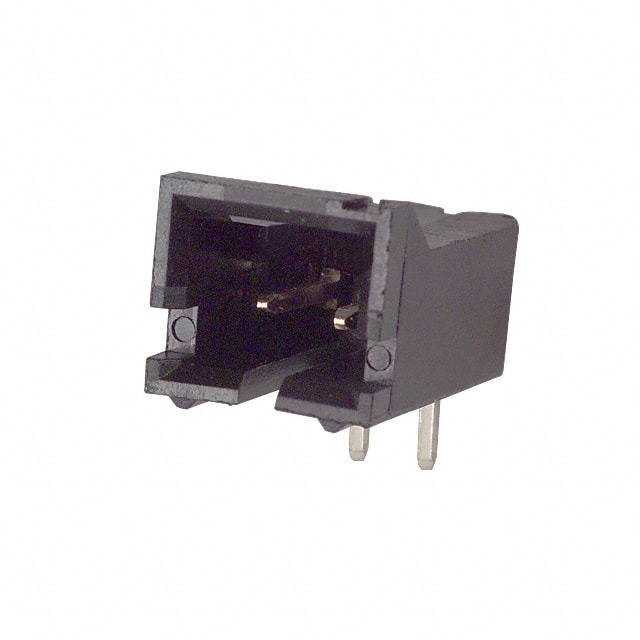

The TE Connectivity 5-103635-1 is a 2 position, single row, 2.54mm pitch shrouded header designed for board-to-board or cable applications. This connector features a right angle through hole mounting style with solder termination, making it suitable for perpendicular connections on PCBs.
The header is fully shrouded with 4 walls and includes a latch holder for secure mating. Contacts are made of brass with a square shape and tin finish (0.38µm thickness). The mating contact length is 5.84mm. The insulation is black thermoplastic with a UL94 V-0 flammability rating and an insulation height of 5.08mm.
Rated for 3A current, this connector is part of TE's AMPMODU MTE series. It includes a keying slot feature for alignment. The product is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.06 | $1.06 |
| 10+ | $0.97 | $0.97 |
| 25+ | $0.71 | $0.71 |
| 71+ | $0.69 | $0.69 |
| 284+ | $0.66 | $0.66 |
| 568+ | $0.62 | $0.62 |
| 1,065+ | $0.60 | $0.60 |
| 5,041+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm.
It has 2 positions.
The current rating is 3A.
Through hole, right angle.
Yes, it is shrouded with 4 walls.
Tin finish with 0.38µm thickness.
