Mfr Part #:

5-103634-5

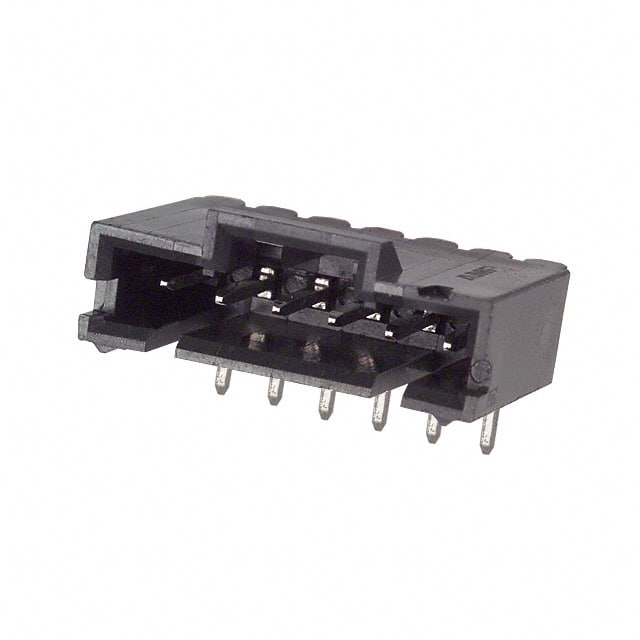

TE Connectivity 5-103634-5 is a 6-position, single-row, right-angle header with 2.54mm pitch and male pin contacts. It features a shrouded 4-wall design with latch holder for secure mating.

✓ Total Stock: 5 pcs

$ Price Range: $1.10 - $1.95

5-103634-5 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5-103634-5 Description

Short technical summary and product information.

The 5-103634-5 from TE Connectivity is a 6-position, single-row, right-angle header with a 2.54mm (0.100") pitch. It features square brass male pins with a tin contact finish of 100.0µin (2.54µm) for reliable conductivity. The header is fully shrouded with a 4-wall design and includes a latch holder fastening type for secure board-to-board or cable connections.

The connector is rated for 3A current and has an operating temperature range of -65°C to 105°C. The insulation is made of black thermoplastic with a UL94 V-0 flammability rating, ensuring safety in various environments. It includes a keying slot feature for polarization.

This header is designed for through-hole, right-angle mounting with solder termination. The contact length is 5.84mm (0.230") and the insulation height is 5.08mm (0.200"), making it suitable for standard spacing requirements.

5-103634-5 Quick Information

Product Type: Header, Male Pins

Canonical Name: 5-103634-5 TE Connectivity 6 Position Header Male Pins, 2.54mm Pitch, Right Angle, Through Hole

Subcategory: Male Pins

5-103634-5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5-103634-5 Estimated Pricing

Qty	Low	High
1+	$1.95	$1.95
10+	$1.82	$1.82
30+	$1.43	$1.43
120+	$1.34	$1.34
270+	$1.25	$1.25
510+	$1.17	$1.17
1,020+	$1.11	$1.11
5,010+	$1.10	$1.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-103634-5 Features

6-position single-row header with 2.54mm pitch.
Right-angle through-hole mounting for space saving.
Shrouded 4-wall design with latch holder.
Rated for 3A current and 105°C max temperature.
UL94 V-0 flammability rated insulation.

5-103634-5 Applications

Ideal for board-to-board or cable connections.
Used in industrial control and automation systems.
Suitable for low-power signal and power distribution.

5-103634-5 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions for the 5-103634-5 header?

6 positions.

What is the pitch of the connector?

2.54mm (0.100").

What is the current rating of this header?

3A.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.

What contact finish is used?

Tin with 100.0µin (2.54µm) thickness.

Does the header have a keying slot feature?

Yes, it includes a keying slot.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	100.0µin (2.54µm)
Contact Length	5.84mm (0.230")
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.08mm (0.200")
Insulation Material	Thermoplastic
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-65°C ~ 105°C
Pitch	2.54mm (0.100")
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
