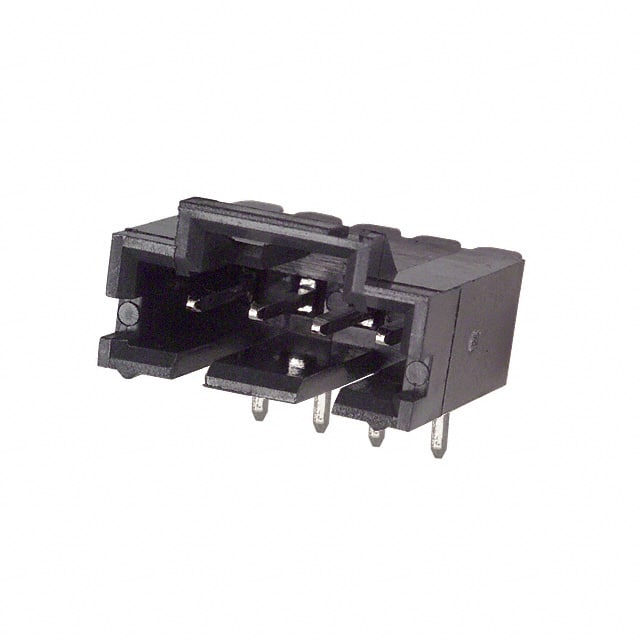

5-103634-3 This is a 4-position right-angle shrouded header from TE Connectivity with 2.54mm pitch. It features through-hole mounting and solder termination, suitable for board-to-board or cable connections.
Mfr Part #:

5-103634-3

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a 4-position right-angle shrouded header from TE Connectivity with 2.54mm pitch. It features through-hole mounting and solder termination, suitable for board-to-board or cable connections.
✓ Total Stock: 236 pcs
$ Price Range: $0.95 - $1.80

5-103634-3 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
234 pcs
On Request
234 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-103634-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

5-103634-3 Description

Short technical summary and product information.

The TE Connectivity 5-103634-3 is a 4-position, single-row, right-angle header with a 2.54mm pitch. It features a shrouded 4-wall design with latch holder fastening for secure mating. The contacts are made of brass with tin finish (100µin thickness) and have a square shape. The header is rated for 3A current and operates over -65°C to 105°C. The insulation is thermoplastic with UL94 V-0 flammability rating. This component is suitable for board-to-board or cable applications. The through-hole, right-angle mounting allows for compact PCB layouts. A keying slot is included to prevent misalignment.

5-103634-3 Quick Information

Product Type: Header
Canonical Name: 4 Position 2.54mm Pitch Right Angle Shrouded Header
Subcategory: Shrouded Header

5-103634-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-103634-3 Estimated Pricing

Qty Low High
1+ $1.80 $1.80
10+ $1.57 $1.57
25+ $1.50 $1.50
84+ $1.40 $1.40
252+ $1.27 $1.27
504+ $1.17 $1.17
1,008+ $1.03 $1.03
2,520+ $1.01 $1.01
5,040+ $0.95 $0.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-103634-3 Features

  • 4-position single-row right-angle header.
  • 2.54mm pitch for compact designs.
  • Shrouded 4-wall design with latch holder.
  • Tin-plated brass contacts for reliability.
  • Rated for 3A continuous current.

5-103634-3 Applications

  • Used in board-to-board connections.
  • Suitable for cable-to-board interfaces.
  • Ideal for industrial control systems.
  • Common in consumer electronics.

5-103634-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions.

What is the pitch of this connector?

2.54mm (0.100").

What is the current rating?

3A.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.

Is the connector shrouded?

Yes, it is a shrouded 4-wall design.

What is the contact finish?

Tin, 100µin (2.54µm) thickness.
