| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

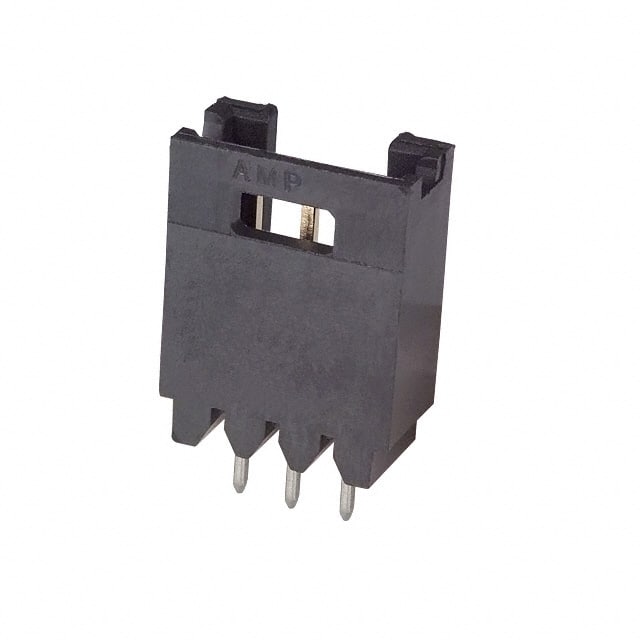

This 3-position header from TE Connectivity is part of the AMPMODU II series of shrouded headers. It features a 2.54mm pitch and through hole mounting for secure soldering to printed circuit boards.
The header is fully shrouded with four walls, providing protection and alignment for mating connectors. It uses a push-pull fastening mechanism and is designed for board-to-board or cable connections. The contacts are square male pins made of copper alloy with a tin finish of 30 microinches (0.76µm). The black thermoplastic insulation has a height of 13.94mm and is rated UL94 V-0 for flame retardancy.
Electrically, the header is rated for 3A continuous current and operates over a temperature range of -65°C to 105°C. It is RoHS3 compliant and meets REACH requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.04 | $1.04 |
| 50+ | $0.90 | $0.90 |
| 100+ | $0.86 | $0.86 |
| 250+ | $0.81 | $0.81 |
| 500+ | $0.79 | $0.79 |
| 1,000+ | $0.77 | $0.77 |
| 5,000+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 3 positions.
The pitch is 2.54mm (0.100").
The current rating is 3A.
Through hole mounting.
-65°C to 105°C.
Tin with 30 microinches (0.76µm) thickness.
Yes, RoHS3 compliant.
