| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

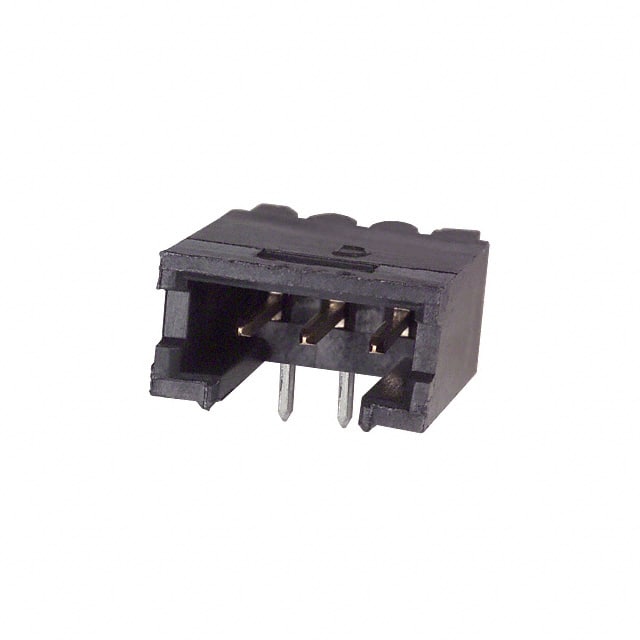

The 5-103361-1 from TE Connectivity is a 3-position, single-row, right-angle male pin header with a 2.54mm pitch. It features a shrouded 4-wall design for robust mating and protection. The contacts are made of phosphor bronze with a tin finish (30µin thickness). The header is through-hole mounted and terminated via soldering. The insulator is black thermoplastic with a UL94 V-0 flammability rating.
The connector is rated for 3A continuous current and operates over a temperature range of -65°C to 105°C. It supports board-to-board or cable connections. The right-angle orientation saves board space and allows for low-profile mating.
Typical applications include industrial controls, consumer electronics, and other systems requiring reliable signal or power interconnects. The push-pull fastening type ensures secure connection without additional locking hardware.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.81 | $2.81 |
| 10+ | $2.56 | $2.56 |
| 50+ | $2.42 | $2.42 |
| 100+ | $2.25 | $2.25 |
| 250+ | $1.97 | $1.97 |
| 500+ | $1.92 | $1.92 |
| 1,000+ | $1.58 | $1.58 |
| 5,000+ | $1.47 | $1.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54mm (0.100 inch).
3A.
Through hole, right angle.
-65°C to 105°C.
Tin with 30µin (0.76µm) thickness.
