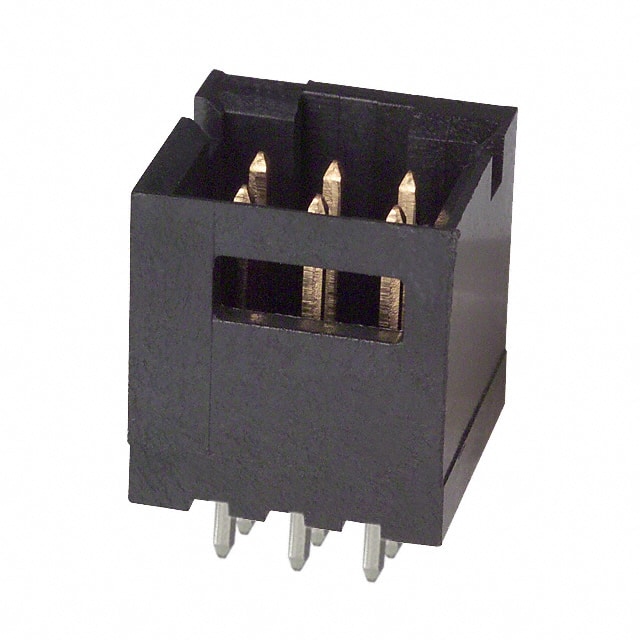

5-103168-1 Connector Header, 6 Position, 2.54mm Pitch, Through Hole, Solder Termination, Shrouded with Detent Lock.
Mfr Part #:

5-103168-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Connector Header, 6 Position, 2.54mm Pitch, Through Hole, Solder Termination, Shrouded with Detent Lock.
✓ Total Stock: 464 pcs
$ Price Range: $1.19 - $1.67

5-103168-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
464 pcs
On Request
464 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-103168-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

5-103168-1 Description

Short technical summary and product information.

The 5-103168-1 is a 6-position, 2-row header connector from TE Connectivity designed for board-to-board or cable applications. It features a 2.54mm pitch and row spacing, making it compatible with standard 0.100-inch grid patterns. The header is shrouded with a 4-wall design and includes a detent lock for secure mating.



The contacts are made of phosphor bronze with a tin finish (30µin thickness) and are rated for 3A current. The insulation is black thermoplastic with a UL94 V-0 flammability rating, suitable for a wide operating temperature range of -65°C to 105°C. Termination is through hole solder, ensuring reliable mechanical and electrical connection.

5-103168-1 Quick Information

Product Type: Header, Male Pins
Canonical Name: 6 Position 2.54mm Pitch Through Hole Header Male Pins
Subcategory: Male Pins

5-103168-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-103168-1 Estimated Pricing

Qty Low High
1+ $1.67 $1.67
10+ $1.44 $1.44
25+ $1.42 $1.42
100+ $1.34 $1.34
250+ $1.23 $1.23
464+ $1.22 $1.22
5,104+ $1.19 $1.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-103168-1 Features

  • 6 position, 2 row header connector.
  • 2.54mm pitch for standard spacing.
  • Shrouded with 4-wall design and detent lock.
  • Tin-plated phosphor bronze contacts.
  • Rated for 3A current and -65°C to 105°C.

5-103168-1 Applications

  • Ideal for wire-to-board applications.
  • Use in board-to-board interconnects.
  • Suitable for industrial control systems.
  • Common in consumer electronics wiring.

5-103168-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 5-103168-1 have?

It has 6 positions arranged in 2 rows, all loaded.

What is the pitch of this header?

The pitch is 2.54mm (0.100 inches).

What is the current rating of the 5-103168-1?

The current rating is 3A.

What mounting type does this connector use?

It uses through hole mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -65°C to 105°C.

Is the connector shrouded?

Yes, it is shrouded with a 4-wall design and includes a detent lock.

What is the contact finish and material?

Contacts are phosphor bronze with a tin finish of 30µin (0.76µm) thickness.
