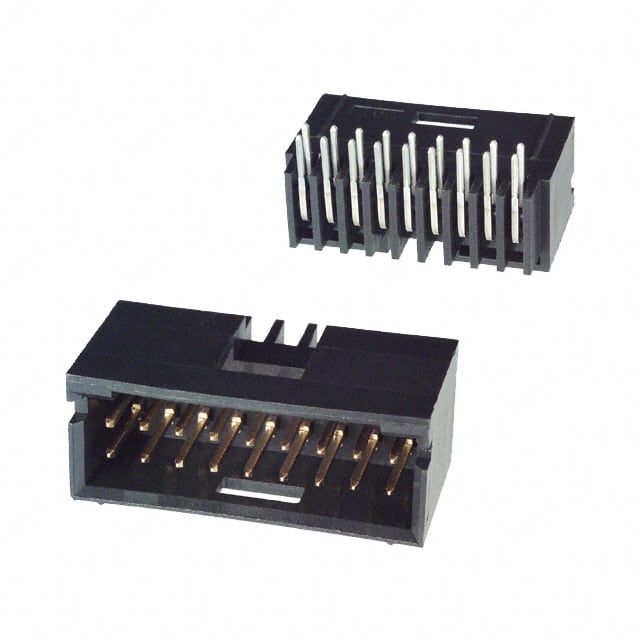

The TE Connectivity 5-103166-7 is a 2.54mm pitch, 18 position, 2 row right angle header designed for board-to-board or cable applications. It features a shrouded 4-wall design with a detent lock fastening system for secure mating. The header uses square male pins made of phosphor bronze with a tin contact finish of 30.0µin (0.76µm).
The connector is rated for 3A current and operates over a temperature range of -65°C to 105°C. The black thermoplastic insulator has a UL94 V-0 flammability rating. The through hole, right angle mounting style allows for efficient board layout in space-constrained designs.
All 18 positions are loaded, and the contact length is 8.08mm (0.318"). The insulation height is 10.16mm (0.400"). This header is suitable for a variety of interconnection needs in industrial and commercial electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.09 | $4.09 |
| 2,688+ | $3.45 | $3.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 18 positions in a 2 row configuration, with all positions loaded.
The pitch is 2.54mm (0.100") with a row spacing of 0.100" (2.54mm).
The current rating is 3A.
The mounting type is through hole, right angle with solder termination.
The operating temperature range is -65°C to 105°C.
The contacts are made of phosphor bronze with a tin finish of 30.0µin (0.76µm).
Yes, it has a shrouded 4-wall design with a detent lock fastening type.
