| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

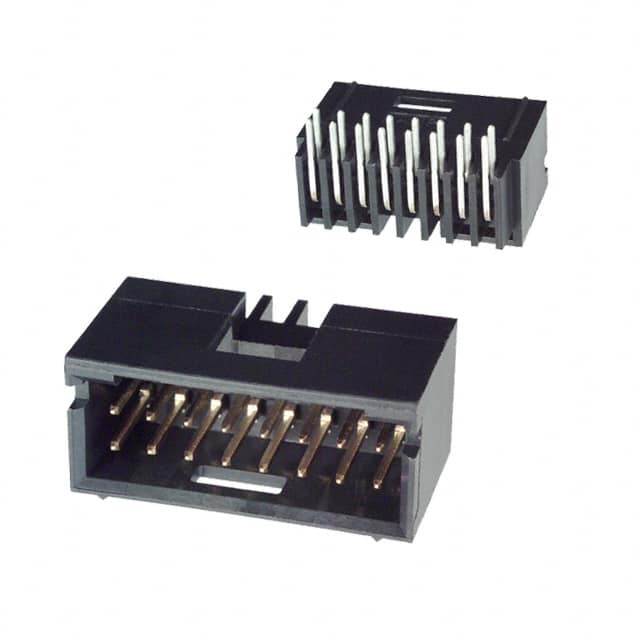

This rectangular header from TE Connectivity provides a reliable board-to-board or cable connection. It features 16 male pin contacts arranged in two rows with a 2.54mm pitch and row spacing. The connector uses a through hole right angle mounting style with solder termination, making it suitable for perpendicular board mounting. The header is fully shrouded with a four-wall design and includes a detent lock fastening system for secure mating. The square pins have a tin contact finish over phosphor bronze material, with a mating contact length of 8.08mm. The black thermoplastic insulator has an insulation height of 10.16mm and a flammability rating of UL94 V-0. This header is rated for 3A current and can operate over a temperature range of -65°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.98 | $3.98 |
| 10+ | $3.88 | $3.88 |
| 25+ | $3.83 | $3.83 |
| 50+ | $3.74 | $3.74 |
| 100+ | $3.26 | $3.26 |
| 416+ | $3.01 | $3.01 |
| 1,040+ | $2.85 | $2.85 |
| 2,704+ | $2.75 | $2.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.54mm (0.100")
16 positions in 2 rows, all positions loaded
3A
Through hole, right angle
Yes, it has a fully shrouded 4-wall housing
Tin, 30.0µin (0.76µm) thickness
-65°C to 105°C
