| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

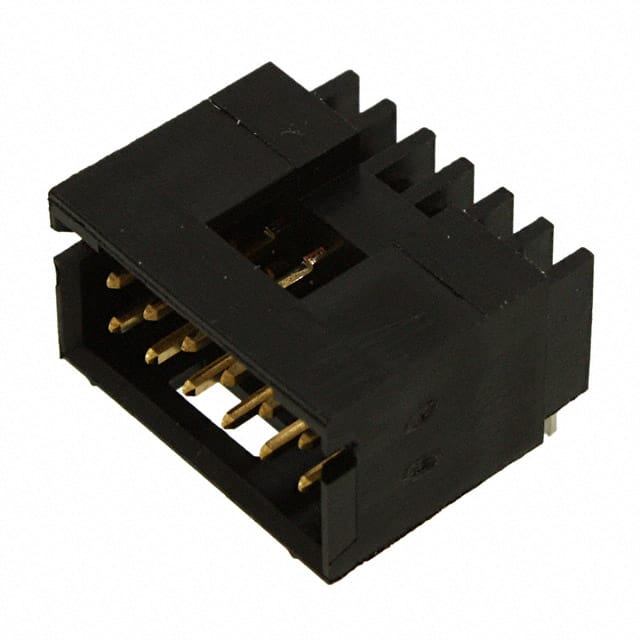

The TE Connectivity 5-103166-4 is a shrouded header with 12 positions arranged in 2 rows. It features a 2.54mm pitch and 2.54mm row spacing, suitable for board-to-board or cable applications.
This header is designed for through-hole mounting with a right-angle orientation. The male pin contacts are made of phosphor bronze with a tin finish, and the insulation material is black thermoplastic. The contact finish thickness is 0.76µm.
Key electrical and thermal specifications include a current rating of 3A and an operating temperature range of -65°C to 105°C. The material has a UL94 V-0 flammability rating.
The header utilizes a detent lock fastening type and has all positions loaded. Its insulation height is 10.16mm.
The header has 12 positions.
The pitch is 2.54mm (0.100").
It is a Through Hole, Right Angle mounting type.
The current rating is 3A.
The operating temperature range is -65°C to 105°C.
The contact material is Phosphor Bronze with a Tin finish.
The insulation material is Thermoplastic and the color is Black.
