| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

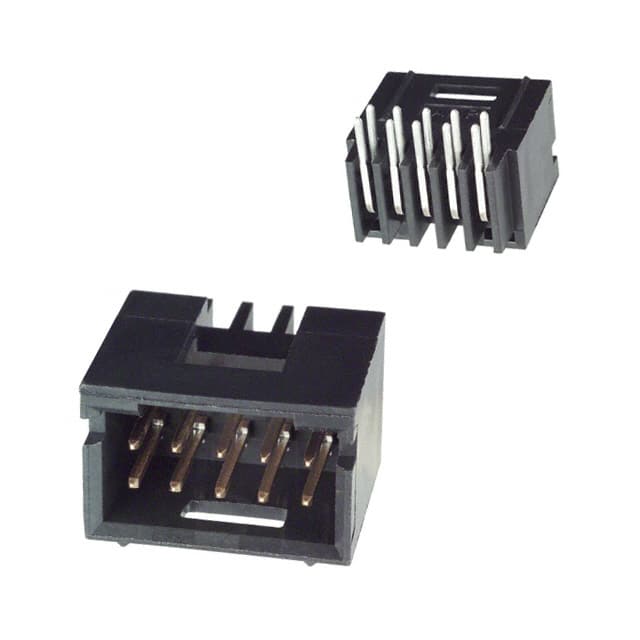

The TE Connectivity 5-103166-3 is a shrouded header connector with 10 positions in a 2-row configuration. It features a 2.54mm (0.100") pitch and right-angle through-hole mounting, suitable for board-to-board or cable connections. The header uses square pins made of phosphor bronze with tin plating (30µin) and a thermoplastic insulation housing. It is rated for 3A current and operates from -65°C to 105°C. The detent lock fastening provides secure mating. The insulation material is UL94 V-0 rated. This component is RoHS3 compliant (low confidence) and has MSL 1. The 4-wall shrouded design protects contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.51 | $4.51 |
| 10+ | $3.84 | $3.84 |
| 25+ | $3.77 | $3.77 |
| 100+ | $3.67 | $3.67 |
| 250+ | $3.01 | $3.01 |
| 500+ | $2.86 | $2.86 |
| 960+ | $2.72 | $2.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, all loaded.
2.54mm (0.100").
3A.
Through hole, right angle.
-65°C to 105°C.
Phosphor bronze with tin plating, 30µin thickness.
Yes, 4-wall shrouded with detent lock fastening.
