| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

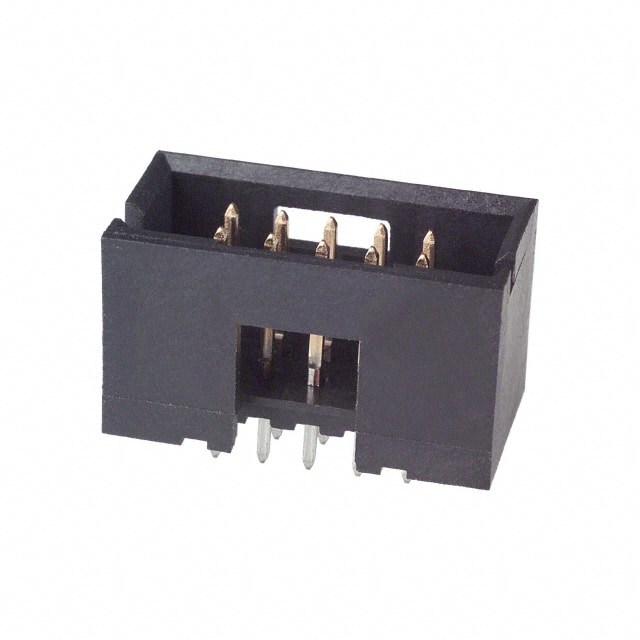

The TE Connectivity 5-102619-3 is a 10 position, 2 row, 2.54mm pitch shrouded header designed for board-to-board or cable applications. It features a 4-wall shrouded housing with a detent lock fastening system for secure mating. The header uses through hole mounting with solder termination and square male pin contacts made of phosphor bronze with a tin finish.
This connector is rated for 3A current and operates over a temperature range of -65°C to 105°C. The black thermoplastic insulator has a UL94 V-0 flammability rating. The overall contact length is 13.55mm with an insulation height of 11.18mm.
Designed for reliable connections in a variety of electronic assemblies, this header is suitable for applications requiring a compact, polarized interconnect solution. The 2.54mm pitch and 2-row configuration are common in many standard PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.21 | $2.21 |
| 25+ | $1.97 | $1.97 |
| 100+ | $1.84 | $1.84 |
| 240+ | $1.75 | $1.75 |
| 480+ | $1.70 | $1.70 |
| 2,640+ | $1.56 | $1.56 |
| 5,040+ | $1.40 | $1.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows, all positions loaded.
2.54mm (0.100") pitch with 2.54mm row spacing.
3A.
Through hole with solder termination.
-65°C to 105°C.
Phosphor bronze contacts with a tin finish, 0.38µm thick.
Yes, it is a 4-wall shrouded header with a detent lock.
