| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
368 pcs
|
368 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

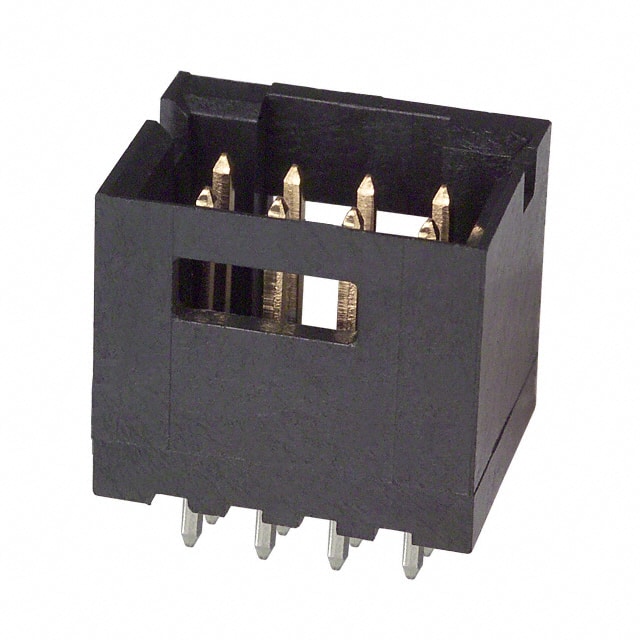

The TE Connectivity 5-102618-2 is a 8 position, 2 row, 2.54mm pitch through hole shrouded header designed for board-to-board or cable applications. It features a 4-wall shrouded housing with a detent lock for secure mating. The header uses square male pins made of phosphor bronze with a tin finish (0.38µm thickness). The overall contact length is 13.55mm with a mating pin length of 8.08mm. The black thermoplastic insulator has a UL94 V-0 flammability rating and an operating temperature range of -65°C to 105°C. This connector is rated for 3A current and is RoHS3 compliant. The through hole solder termination and 2.54mm row spacing make it suitable for standard PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.20 | $2.20 |
| 10+ | $1.79 | $1.79 |
| 25+ | $1.69 | $1.69 |
| 100+ | $1.59 | $1.59 |
| 250+ | $1.40 | $1.40 |
| 368+ | $1.38 | $1.38 |
| 1,104+ | $1.27 | $1.27 |
| 2,576+ | $1.24 | $1.24 |
| 5,152+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5-102618-2 has 8 positions in 2 rows.
The pitch is 2.54 mm (0.100 in) with the same row spacing.
The current rating is 3 A.
Through hole with solder termination.
-65°C to 105°C.
Phosphor bronze contacts with a tin finish of 0.38 µm (15.0 µin).
