| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
557 pcs
|
557 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

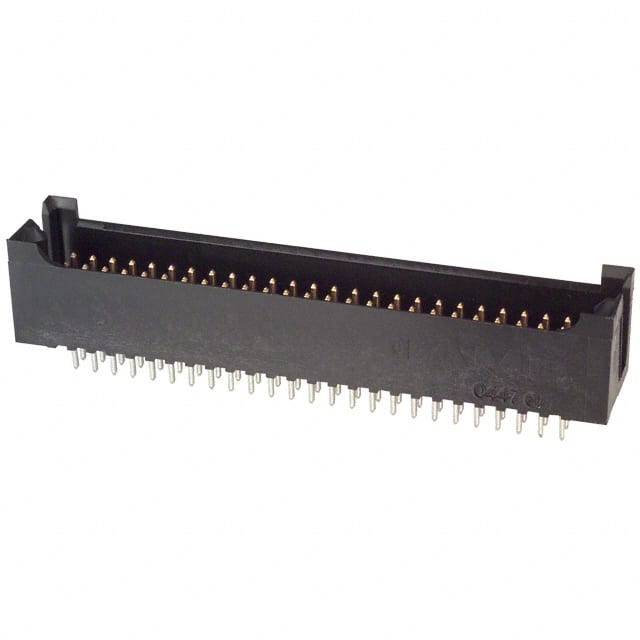

The TE Connectivity 5-102567-6 is a 50 position, dual row, shrouded header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and row spacing, with all positions loaded. The connector uses square male pin contacts made of copper alloy with a tin finish (15.0µin).
The header is housed in a black, glass-filled thermoplastic insulator with a UL94 V-0 flammability rating. It has a 4-wall shrouded design with push-pull fastening, providing robust mating alignment and protection. The operating temperature range is -65°C to 105°C.
Electrical ratings include a 3A current rating and 250VAC voltage rating. The connector is through hole mounted with solder termination and is pin-in-paste capable to 260°C. It is RoHS, REACH, China RoHS, and ELV compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.74 | $11.74 |
| 10+ | $10.41 | $10.41 |
| 24+ | $10.01 | $10.01 |
| 48+ | $9.61 | $9.61 |
| 120+ | $9.07 | $9.07 |
| 264+ | $8.27 | $8.27 |
| 504+ | $7.74 | $7.74 |
| 1,008+ | $7.10 | $7.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 50 positions arranged in 2 rows.
The current rating is 3A.
The voltage rating is 250VAC.
It uses through hole mounting with solder termination.
Yes, it is compliant with EU RoHS Directive 2011/65/EU.
The operating temperature range is -65°C to 105°C.
