| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

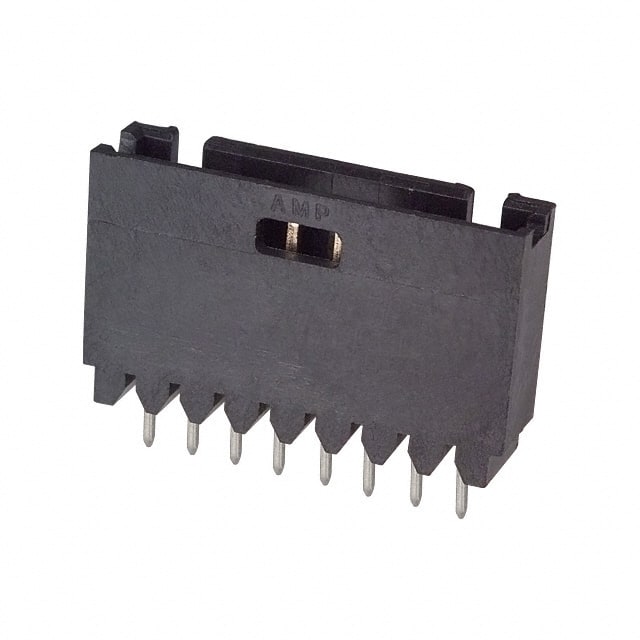

The TE Connectivity MOD II header (part number 5-102202-5) is a 8-position, single-row, shrouded header designed for board-to-board or cable applications. It features male square pins with tin contact finish (15.0µin thickness) and brass contact material. The header has a 2.54mm (0.100") pitch and an overall contact length of 14.96mm (0.589").
This through-hole component is housed in a black thermoplastic insulator rated UL94 V-0 for flammability. The 4-wall shrouding provides protection and alignment for mating connectors. Operating temperature range is -65°C to 105°C, with a current rating of 3A per contact.
The push-pull fastening type allows easy mating and unmating. The header is suitable for use in a variety of electronic assemblies requiring reliable, polarized connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.19 | $3.19 |
| 10+ | $1.83 | $1.83 |
| 23+ | $1.62 | $1.62 |
| 5,014+ | $1.37 | $1.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in a single row.
2.54mm (0.100").
3A per contact.
Through hole with solder termination.
-65°C to 105°C.
Brass contacts with tin finish (15.0µin thickness).
