| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,040 pcs
|
2040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
640 pcs
|
640 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approved Standards | |
| CSA | |
| Centerline | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Plating Material | |
| Contact Mating Area Plating Thickness | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Header Type | |
| Housing Style | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mating Post Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| PCB Thickness Recommended | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Shrouding | |
| Solder Tail Contact Plating Material Finish | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Post Length | |
| UL | |
| UL Flammability Rating |

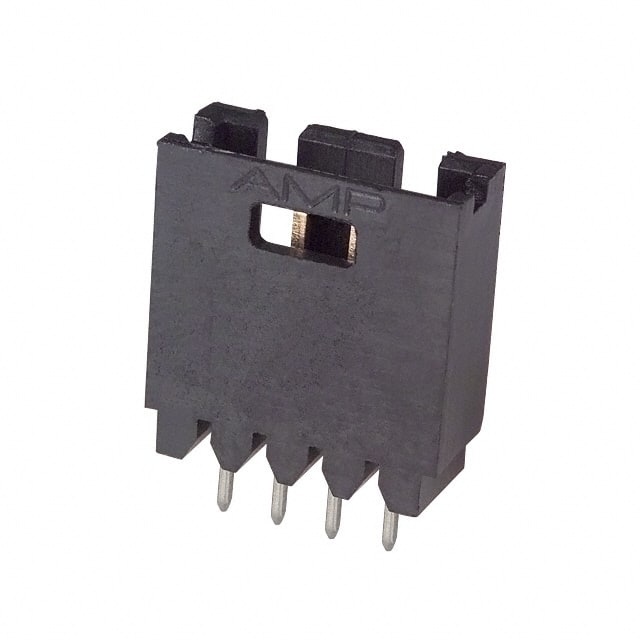

The 5-102202-1 from TE Connectivity is a 4-position, single-row shrouded header from the AMPMODU MOD II series. It features a 2.54mm pitch, through-hole mounting, and male square pins with gold plating on the mating area and matte tin over nickel on solder tails. The header is fully shrouded with a 4-wall design for robust mating and push-pull fastening.
Electrical rating is 3A with a dielectric withstanding voltage of 750 Vrms. The operating temperature range is -65°C to 105°C. Insulation is black thermoplastic rated UL 94V-0. The overall contact length is 14.96mm, with a mating post length of 6.1mm and a termination post length of 3.3mm.
This header is suitable for board-to-board or cable applications and comes packaged in a tube of 40 pieces. It is compliant with RoHS and REACH (unverified) and carries UL and CSA approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
| 10+ | $1.86 | $1.86 |
| 25+ | $1.31 | $1.31 |
| 120+ | $1.25 | $1.25 |
| 280+ | $1.22 | $1.22 |
| 520+ | $1.14 | $1.14 |
| 1,000+ | $1.07 | $1.07 |
| 5,000+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch (centerline) is 2.54mm.
It has 4 positions in a single row.
The current rating is 3A.
It is a through-hole mounting header.
Yes, it is a 4-wall shrouded header.
-65°C to 105°C.
UL 94V-0.
