| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,000 pcs
|
23000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 1713 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrier Type | |
| Bottom Termination | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Number of Rows | |
| Number of Wire Entries | |
| Pitch | |
| Terminal Block Type | |
| Termination Style | |
| Top Termination | |
| Voltage Rating | |
| Wire Gauge |

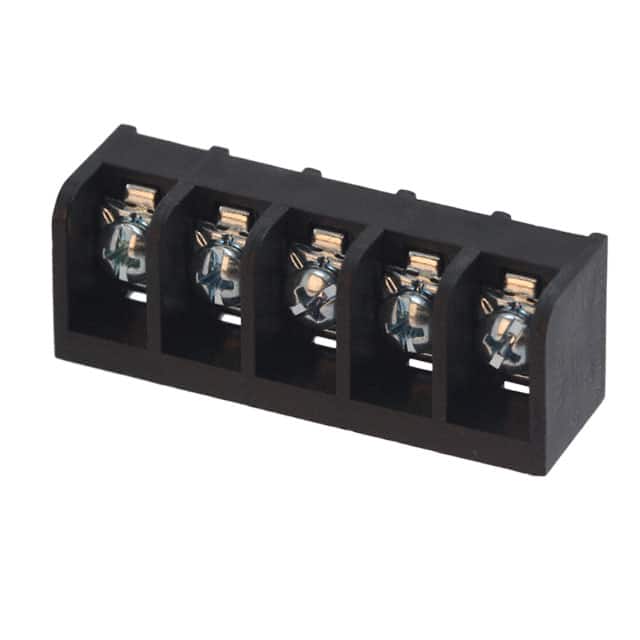

The TE Connectivity 4PCV-05-006 is a 5-circuit barrier block designed for reliable wire termination in power distribution and control applications. It features a 20A current rating and 150V voltage rating, making it suitable for moderate power requirements. The block uses screws with captive plate top termination and PC pin bottom termination for secure connections.
This barrier block has a 0.325" (8.26mm) pitch and accepts wire gauges from 12 to 22 AWG. It features a 3-wall (tri) barrier design for enhanced creepage and clearance between circuits. The single-row configuration with 5 wire entries simplifies wiring in space-constrained designs.
The component is through-hole mounted and comes in a black housing. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The barrier block is commonly used in industrial control panels, power supplies, and test equipment where reliable, serviceable connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.21 | $5.21 |
| 10+ | $3.80 | $3.80 |
| 25+ | $3.37 | $3.37 |
| 50+ | $3.23 | $3.23 |
| 500+ | $2.31 | $2.31 |
| 5,120+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 20 A.
The voltage rating is 150 V.
The pitch is 8.26 mm (0.325").
It has 5 circuits.
It accepts 12-22 AWG wire.
Through hole mounting.
