| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Transfer Ratio (Min) | |
| Industrial Grade | |
| Input Type | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Turn Off Time | |
| Turn On | |
| Voltage |
The Vishay Dale 4N38 is a single-channel optocoupler featuring a gallium arsenide infrared LED and a silicon NPN phototransistor. It provides a high isolation test voltage of 5000 VRMS, making it suitable for applications requiring electrical isolation.
This device is designed for interfacing with common logic families and has an input-output coupling capacitance of less than 0.5 pF. The optocoupler operates with a nominal forward current of 60 mA and a minimum current transfer ratio of 20% at 20 mA. Switching times are approximately 10µs for both turn-on and turn-off.

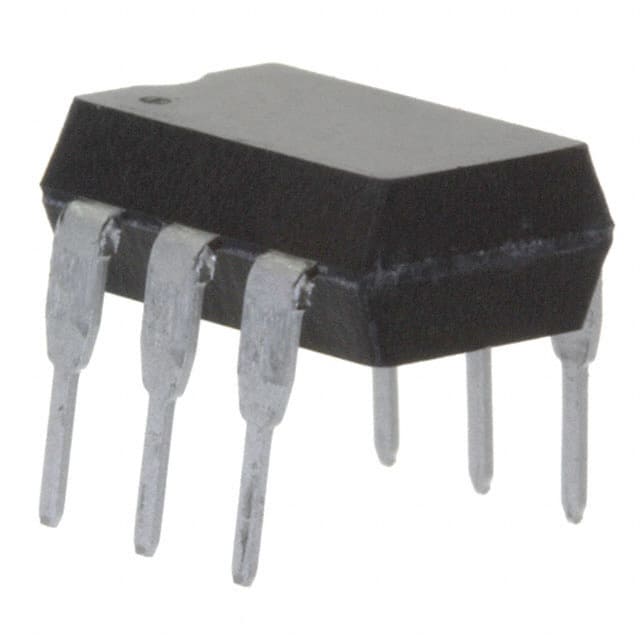

The 4N38 is housed in an industry-standard 6-pin dual-in-line package (DIP) with a 0.300" (7.62mm) lead spacing. It is designed for through-hole mounting and operates across a wide temperature range of -55°C to 100°C.
Key applications include AC mains detection, reed relay driving, switch mode power supply feedback, telephone ring detection, logic ground isolation, and logic coupling with high-frequency noise rejection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 4N38 optocoupler has an isolation test voltage of 5000 VRMS.
The nominal forward current for the 4N38 is 60 mA.
The minimum current transfer ratio for the 4N38 is 20% at 20mA.
The 4N38 operates within a temperature range of -55°C to 100°C.
The 4N38 is available in a 6-DIP (0.300", 7.62mm) package.
The 4N38 is designed for through-hole mounting.
