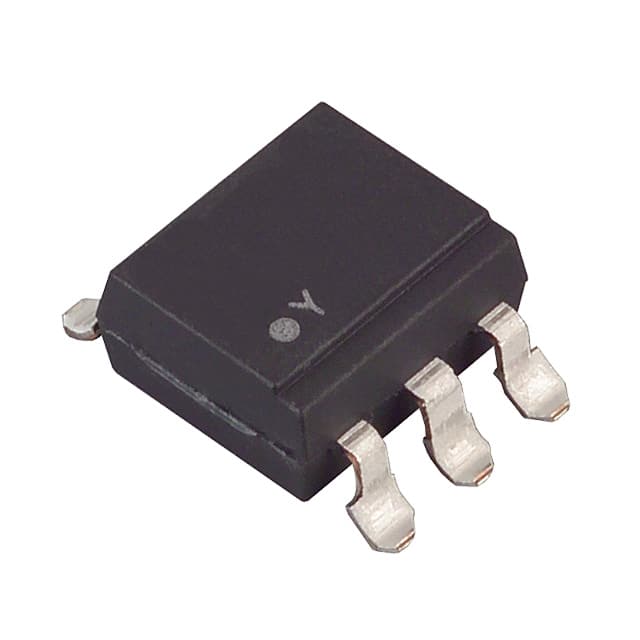

4N35S The Lite-On Inc. 4N35S is an optoisolator with 3550Vrms isolation voltage and a transistor with base output. It comes in a 6-SMD package.
Mfr Part #:

4N35S

Available from 2 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. 4N35S is an optoisolator with 3550Vrms isolation voltage and a transistor with base output. It comes in a 6-SMD package.
✓ Total Stock: 1,830 pcs
$ Price Range: $0.99

4N35S Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
1,700 pcs
On Request
1700 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
130 pcs
On Request
130 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4N35S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Transfer Ratio (Min)
Forward Current
Forward Voltage
Input Type
Mounting Type
Number of Channels
Operating Temperature
Output Current
Output Type
Response Time
Rise
Storage Temperature
Supplier Device Package
Tape & Reel
Vce Saturation (Max)
Voltage
View Similar Products (0)

4N35S Description

Short technical summary and product information.

The Lite-On Inc. 4N35S is a surface-mount optoisolator designed for high input-output isolation. It offers a minimum isolation voltage of 3550Vrms and a current transfer ratio (CTR) of at least 100% at 10mA.



This component features a transistor output with a base, suitable for applications requiring digital logic input or microprocessor interfacing. The device operates with a typical forward voltage of 1.2V and a maximum forward current of 60mA. Its output current capability is up to 100mA, with a Vce saturation of a maximum of 300mV.



The 4N35S is housed in a 6-SMD, Gull Wing package, facilitating surface mounting. It operates within a temperature range of -55°C to 100°C. The optoisolator has a typical response time of 3µs for both rise and fall.



Key applications include power supply regulators, digital logic inputs, and microprocessor inputs, providing reliable signal isolation in various electronic systems.

4N35S Quick Information

Product Type: Optoisolator
Series: 4N3X
Canonical Name: 4N35S Optoisolator
Subcategory: Transistor Output

4N35S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4N35S Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

4N35S Features

  • 3550Vrms minimum isolation voltage
  • 100% minimum current transfer ratio
  • Surface mount 6-SMD Gull Wing package
  • DC input type
  • Transistor with base output type

4N35S Applications

  • Electrical isolation in high-voltage circuits
  • Optocouplers for signal isolation
  • Fast switching in industrial controls
  • Isolation in power supply circuits

4N35S FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the 4N35S optoisolator?

The 4N35S optoisolator has an isolation voltage of 3550Vrms.

What is the minimum current transfer ratio (CTR) for the 4N35S?

The minimum current transfer ratio (CTR) for the 4N35S is 100% at 10mA.

What is the operating temperature range for the 4N35S?

The operating temperature range for the 4N35S is -55°C to 100°C.

What package type is the 4N35S optoisolator supplied in?

The 4N35S optoisolator is supplied in a 6-SMD, Gull Wing package.

What is the typical response time of the 4N35S?

The typical response time for the 4N35S is 3µs.
