Mfr Part #:

4993-0-15-15-10-27-10-0

Name: 4993-0-15-15-10-27-10-0
Brand: Mill-Max Manufacturing
SKU: 4993-0-15-15-10-27-10-0

Description:

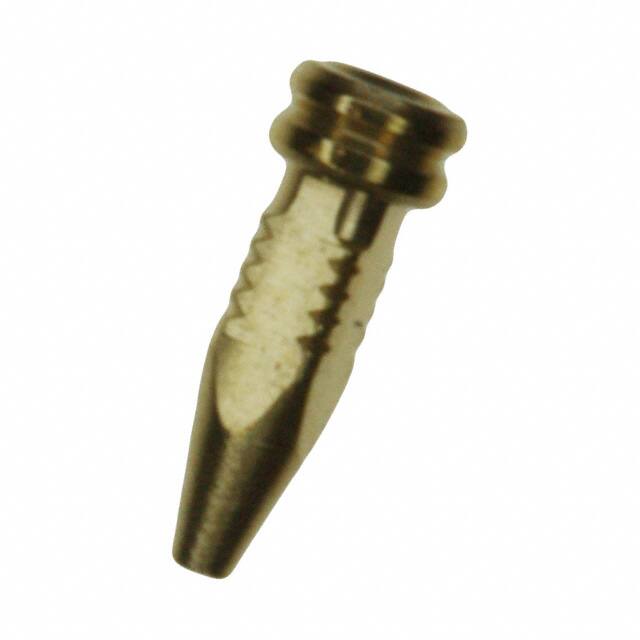

CONN PIN RCPT .012-.017 PRESSFIT

Stock on Request

4993-0-15-15-10-27-10-0 Description

Short technical summary and product information.

CONN PIN RCPT .012-.017 PRESSFIT

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	PC Pin Receptacles, Socket Connectors
Manufacturer Name	Mill-Max Manufacturing
Accepts Pin Diameter	0.012" ~ 0.017" (0.30mm ~ 0.43mm)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Beryllium Copper
Flange Diameter	0.055" (1.40mm)
Length	0.155" (3.94mm)
Mounting Hole Diameter	0.041" ~ 0.044" (1.04mm ~ 1.12mm)
Pin Hole Diameter	0.028" (0.71mm)
Socket Depth	0.100" (2.54mm)
Tail Type	No Tail
Termination	Press-Fit
