| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
576 pcs
|
576 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

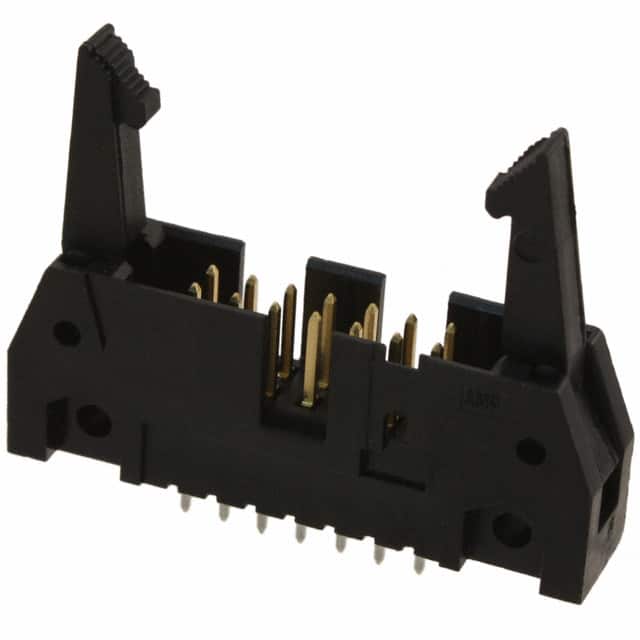

The TE Connectivity 499206-2 is a 14-position, 2-row shrouded header with a 2.54mm (0.100") pitch and 0.100" row spacing. It features a shrouded 4-wall design for pin protection and alignment. The header is through-hole mounted with solder termination, making it suitable for robust board-to-cable/wire connections.
Electrical ratings include 1A current and 250VAC voltage, with an operating temperature range of -65°C to 105°C. Contacts are square pins with a tin-lead finish of 30µin (0.76µm) thickness. The overall contact length is 0.639" (16.23mm) and insulation height is 0.549" (13.94mm). The insulator is black UL94 V-0 rated material.
Mechanical features include a keying slot for polarization, mounting flanges for secure attachment, and long latch lock/eject hooks for reliable mating and unmating. The header is wave solder capable to 265°C. It is designed for applications requiring a secure locking mechanism.
Compliance: This part is not RoHS compliant due to lead content (EU RoHS exemption not applicable). It is EU ELV compliant with exemptions and contains SVHC above threshold (lead). It is not low halogen. China RoHS indicates restricted materials above threshold.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.25 | $5.25 |
| 10+ | $4.78 | $4.78 |
| 25+ | $4.66 | $4.66 |
| 48+ | $4.58 | $4.58 |
| 96+ | $4.46 | $4.46 |
| 288+ | $3.52 | $3.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions arranged in 2 rows.
2.54mm (0.100").
1A.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
No, it is not RoHS compliant due to lead content. It is EU ELV compliant with exemptions.
