| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination |

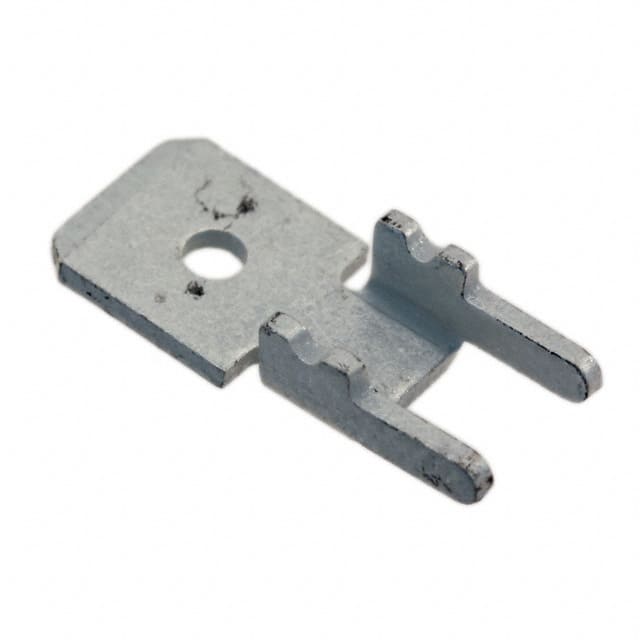

The Keystone Electronics 4902 is a non-insulated male quick connect tab terminal designed for through hole solder mounting. It features a 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, and 0.273" (6.93mm) tab length. The overall length is 0.710" (18.1mm) per the datasheet drawing, with a mounting hole diameter of 0.067" (1.7mm).
The terminal is constructed from brass with a tin plate finish, ensuring good conductivity and corrosion resistance. It is RoHS compliant and REACH unaffected. This part is suitable for applications requiring a reliable solder connection in a compact footprint.
As a non-insulated terminal, it is intended for use where insulation is not required or where additional insulation can be applied separately. The through hole mounting type allows for secure attachment to printed circuit boards.
The tab width is 0.250" (6.35mm).
Through hole solder mounting.
Yes, it is RoHS compliant per the datasheet.
Brass with a tin plate finish.
The datasheet indicates an overall length of 0.710" (18.1mm).
