| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Material Thickness | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style |

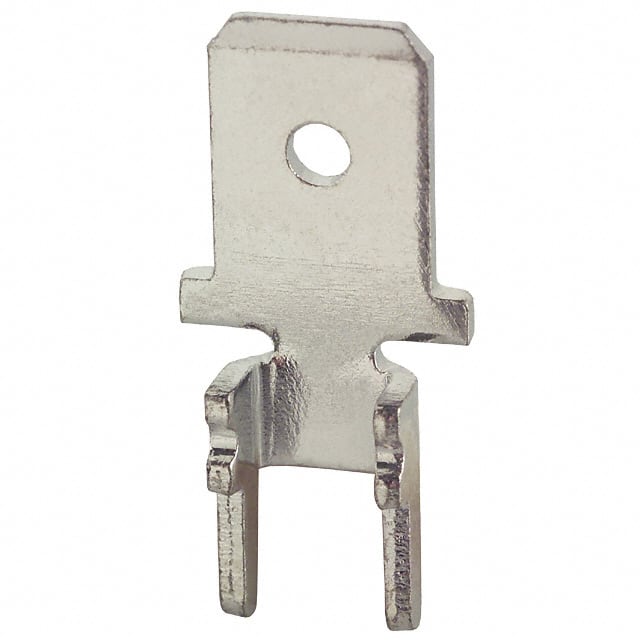

The Keystone Electronics 4900 is a male quick connect tab terminal designed for solder connection to a printed circuit board. It features a standard 0.187" (4.75mm) tab width, 0.020" (0.51mm) tab thickness, and 0.250" (6.35mm) tab length. The overall length of the terminal is 14.48mm (0.570"). The contact is made of brass with a tin finish, providing good conductivity and solderability. The mounting hole diameter is 1.1mm (0.043") and the material thickness is 0.50mm (0.020"). This terminal is non-insulated and uses through hole mounting with solder termination. It is RoHS3 compliant (unverified) and has a moisture sensitivity level of 1 (unlimited). The part is cross-referenced as DigiKey 36-4900-ND. Typical applications include power supply connections, battery connectors, and other quick disconnect interfaces in electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
| 10+ | $0.15 | $0.15 |
| 25+ | $0.13 | $0.13 |
| 100+ | $0.11 | $0.11 |
| 500+ | $0.10 | $0.10 |
| 2,500+ | $0.10 | $0.10 |
| 5,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.187" (4.75mm)
0.020" (0.51mm)
0.250" (6.35mm)
Brass contact with tin finish.
Through hole with solder termination.
RoHS3 compliant (unverified).
MSL 1 (unlimited) (unverified).
