Mfr Part #:

4842

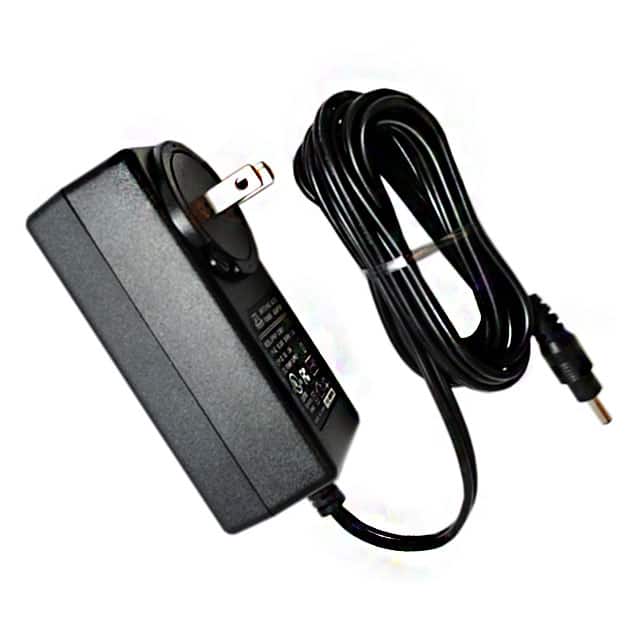

The Inspired LED, LLC 4842 is an AC/DC wall mount adapter providing 12VDC at 3.8A for a total of 46W. It features a NEMA 1-15P input connector and a 1.3mm x 3.5mm barrel plug output.

Stock on Request

4842 Description

Short technical summary and product information.

The Inspired LED, LLC 4842 is a Class II wall mount AC/DC power adapter designed for ITE (Commercial) applications. It operates with a 100-240 VAC input, utilizing a fixed blade NEMA 1-15P connector suitable for North American outlets.

The adapter delivers a stable 12VDC output at 3.8A, providing a total power of 46W. The output is delivered via a standard barrel plug with a 1.3mm inner diameter and 3.5mm outer diameter. The unit has a cord length of 72 inches (1.83m) and measures 96.5mm x 45.7mm x 38.1mm (3.80" L x 1.80" W x 1.50" H).

This power supply is compliant with RoHS3 standards and has an MSL rating of 1, indicating unlimited shelf life under standard conditions. It is designed for reliable performance in commercial environments.

4842 Quick Information

Product Type: AC/DC Desktop, Wall Adapter

Canonical Name: Inspired LED, LLC 4842 AC/DC Wall Mount Adapter

Subcategory: AC/DC Wall Adapter

4842 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

4842 Features

12VDC output at 3.8A for 46W power
NEMA 1-15P input for North American outlets
3.5mm x 1.3mm barrel plug output connector
72-inch (1.83m) integrated cord
Compact wall-mount (Class II) form factor

4842 Applications

For commercial ITE (Information Technology Equipment).
Powers devices requiring 12V DC at 3.8A.
Suitable for North American wall outlets (NEMA 1-15P).
Compact design for space-constrained installations.

4842 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

100-240 VAC.

What is the output voltage and current?

12 VDC at 3.8A.

What is the power rating?

46W.

What type of input connector does it use?

NEMA 1-15P (North American plug).

What is the output connector type?

Barrel plug with 1.3mm I.D. and 3.5mm O.D.

What are the dimensions of the adapter?

96.5mm x 45.7mm x 38.1mm (3.80" x 1.80" x 1.50").

What is the cord length?

1.83m (72 inches).

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Inspired LED, LLC
Applications	ITE (Commercial)
Cord Length	1.83m (72")
Current	3.8A
Form	Wall Mount (Class II)
Height	38.1mm (1.50")
Input Connector	NEMA 1-15P
Input Type	100-240 VAC
Length	96.5mm (3.80")
Output Connector	Barrel Plug, 1.3mm I.D. x 3.5mm O.D.
Power (Watts)	46W
Region Utilized	North America
Voltage	12 VDC
Width	45.7mm (1.80")
