| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Industrial Grade | |
| Industry Recognized Mating Diameter | |
| Insulation Color | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

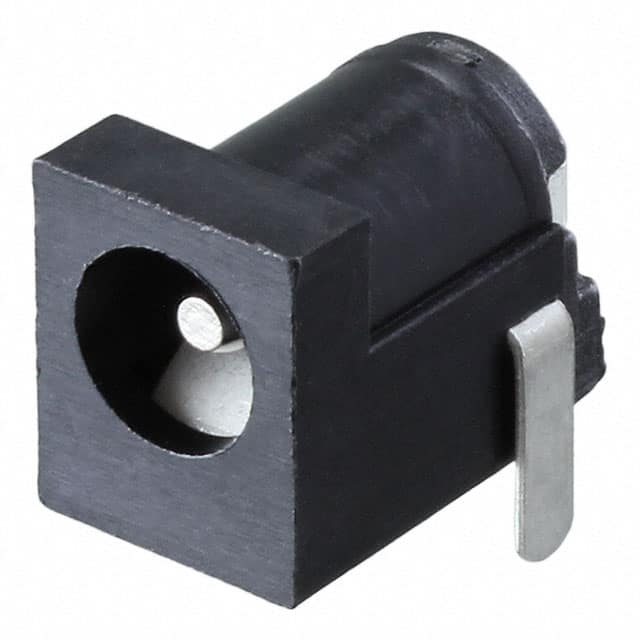

The Schurter 4840.2211 is a male power jack connector designed for panel mount applications with a bulkhead rear side nut mounting feature. It features a 2.35mm inner diameter and 6.00mm outer diameter mating interface, with 2 conductors and 3 contacts. The connector is unshielded and has a black insulation color.
Electrical ratings include a current rating of 500mA and a voltage rating of 12VAC/DC. It includes a single internal switch that is normally closed. The operating temperature range is -20°C to 70°C.
Termination is via solder lugs, making it suitable for permanent wired connections. The bulkhead mounting with rear side nut provides secure panel installation. This connector is commonly used in low-power DC power supply applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.20 | $3.20 |
| 10+ | $2.44 | $2.44 |
| 25+ | $2.36 | $2.36 |
| 250+ | $2.04 | $2.04 |
| 500+ | $1.99 | $1.99 |
| 1,000+ | $1.89 | $1.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The industry recognized mating diameter is 2.35mm ID (0.093") and 6.00mm OD (0.236").
The current rating is 500mA and the voltage rating is 12VAC/DC.
It is a panel mount connector with a bulkhead rear side nut mounting feature.
Yes, it has a single internal switch that is normally closed.
The operating temperature range is -20°C to 70°C.
No, it is unshielded.
