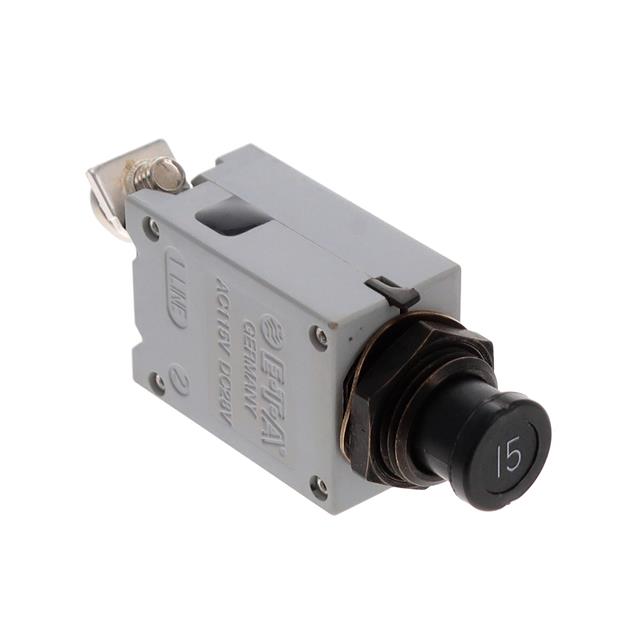

The E-T-A 483-V533-J3M1-C4S0ZN-15A is a miniaturized, aircraft-style thermal circuit breaker. It is designed for panel mounting and features a push/pull manual actuation mechanism with an indicator band to clearly show the tripped/off position.
This single-pole circuit breaker has a current rating of 15A and is suitable for AC voltage ratings of 115V (400 Hz) and DC voltage ratings of 28V. It offers a high interrupting capacity of 1,000A at 115VAC and 6,000A at 28VDC.
The device operates within an ambient temperature range of -55°C to +125°C. It meets various environmental and mechanical stress requirements, including vibration, shock, and corrosion resistance, making it suitable for demanding applications.
Key specifications include a degree of protection of IP 40 for the operating area and IP 00 for the terminal area. The circuit breaker has a typical mechanical life of 20,000 operations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 15A.
It is rated for 115 VAC and 28 VDC.
It uses panel mounting.
The ambient temperature range is -55°C to +125°C.
The typical mechanical life is 20,000 operations.
The degree of protection for the operating area is IP 40.
