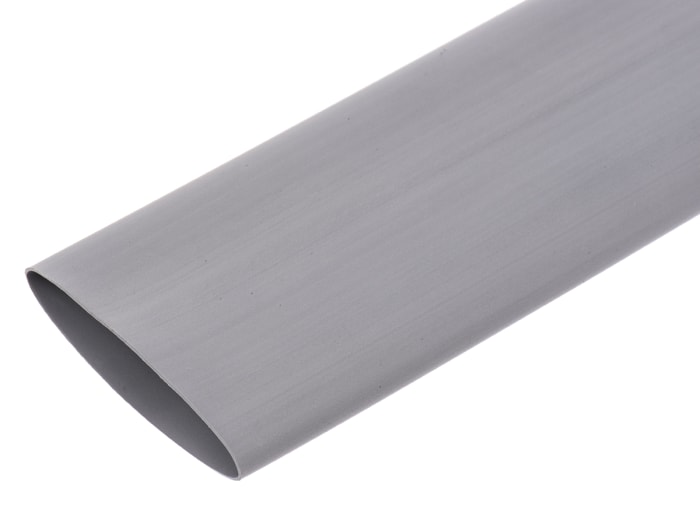

The RS PRO Heat Shrink Tubing, grey, offers a 2:1 shrink ratio, meaning it shrinks to half its original diameter when heat is applied. This tubing is constructed from flexible, flame retardant polyolefin, a durable and commonly used insulating material.
With a sleeve diameter of 25.4mm and a length of 1.2m, this heat shrink tubing is suitable for protecting and insulating wire or cable joints. It meets various industrial standards, including SAE-AMS-DTL-23053/5 Class 1.
The operating temperature range is from -55°C to +135°C, with short-term exposure up to 200°C. The minimum shrink temperature is 90°C. Its excellent electrical insulation properties and resistance to common fluids and solvents make it a versatile choice for many applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-55 to +135°C continuous, with short-term excursions up to 200°C.
2:1, expanding from 25.4mm to 12.7mm.
Polyolefin.
Yes, it is flame retardant and UL 224 VW-1 rated.
90°C.
No, it is not halogen free.
BS3G 198 Part 3 11B, CSA C22.2 No. 198.1, IEC 60684-3-212 A&B, MIL SAE-AMS-DTL 23053/5 Class 1, UL 224 VW-1, VG 95343 Part 5 A&B.
