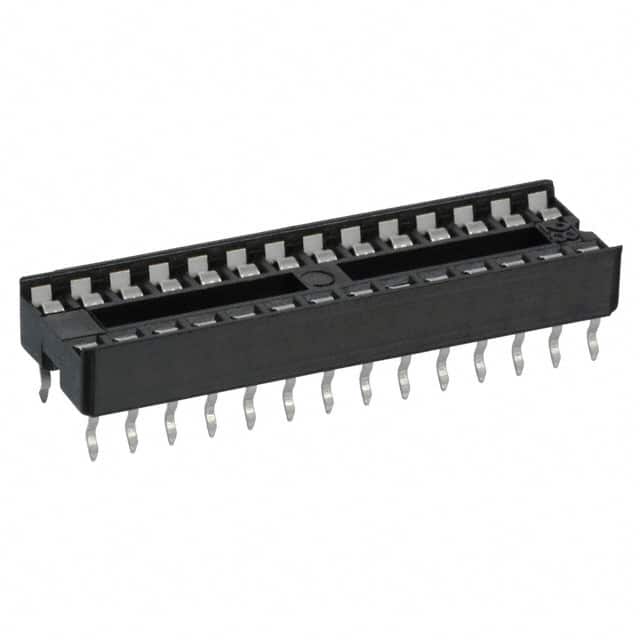

The 3M 4828-3004-CP is a 28-position DIP socket from the 4800 series, featuring a dual-wipe, stamped and formed contact design for reliable termination. The socket has a 0.3 inch (7.62mm) row spacing and 2.54mm (0.100 inch) pitch, making it suitable for standard 28-pin DIP ICs.
Key specifications include a current rating of 1A, insulation resistance of 5000 MΩ at 500V DC, and withstanding voltage of 100V AC for 1 minute. The housing is made of glass-filled polyester with UL 94V-0 flammability rating, and the contacts are phosphor bronze with a 35.4 microinch (0.90µm) tin finish.
The socket is designed for through hole mounting with solder termination, and is side and end stackable for multi-socket applications. It has an open frame body style and can withstand wave solder reflow up to 260°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
| 10+ | $1.11 | $1.11 |
| 25+ | $0.95 | $0.95 |
| 100+ | $0.88 | $0.88 |
| 250+ | $0.85 | $0.85 |
| 500+ | $0.82 | $0.82 |
| 1,000+ | $0.77 | $0.77 |
| 2,500+ | $0.63 | $0.63 |
| 5,600+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 28 positions arranged in a 2x14 grid.
The pitch is 2.54mm (0.100 inch) with a 0.3 inch (7.62mm) row spacing.
The current rating is 1A.
It is a through hole mount socket with solder termination.
The operating temperature range is -25°C to +85°C.
The contact finish is tin with a thickness of 35.4 microinches (0.90µm).
