| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,591 pcs
|
1591 pcs | On Request | 1 | On Request | On Request | 1042 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Body Material | |
| Circuit Type | |
| Dielectric Withstanding Voltage | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

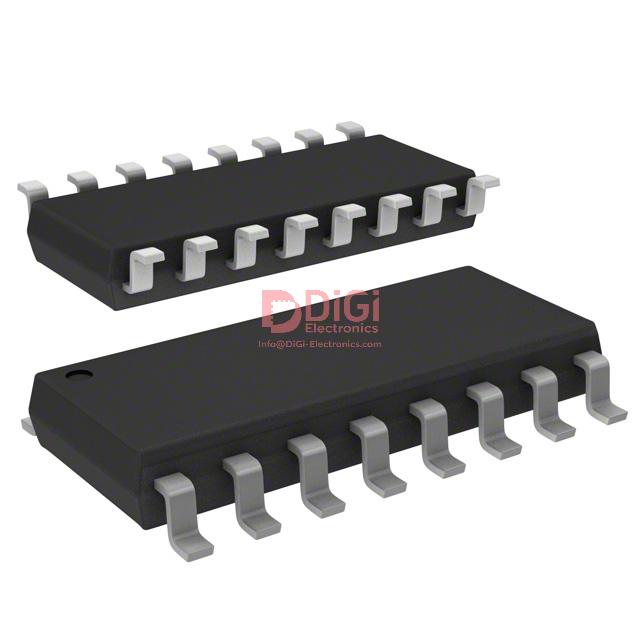

This Bourns 4816P-1-510LF is a resistor network array designed for surface mounting. It contains 8 individual resistors, each with a nominal resistance of 51 Ohms and a tolerance of ±2%. The network operates within a temperature range of -55°C to +125°C and has a temperature coefficient of ±100ppm/°C.
The component is housed in a 16-SOIC package with dimensions of 11.18mm L x 5.59mm W and a height of 2.40mm. The circuit type is isolated, and each resistor element is rated for 160mW of power. This device is suitable for automotive applications and is AEC-Q200 compliant.
Key electrical characteristics include a maximum operating voltage of 50V and an insulation resistance of 10,000 megohms minimum. The dielectric withstanding voltage is 200 VRMS. Environmental testing per MIL-STD-202 ensures reliability under various conditions, including short time overload, load life, moisture resistance, resistance to soldering heat, and thermal shock.
The component's lead frame is made of copper with a solder coating, and the body material is thermoplastic. It conforms to UL94V-0 flammability standards. The device is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 51 Ohms.
The tolerance is ±2%.
There are 8 resistors in this array.
The circuit type is isolated.
The operating temperature range is -55°C to +125°C.
It is in a 16-SOIC package.
Yes, it is AEC-Q200 compliant and listed for automotive applications.
