| Category | |
| Manufacturer Name | |
| Acceptable Pin Diameter | |
| Acceptable Pin Length | |
| Body Style | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| Insertion Force | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Solder Process Temperature | |
| Surface Plating Thickness | |
| Termination | |
| Type | |
| Withdrawal Force | |
| Withstanding Voltage |

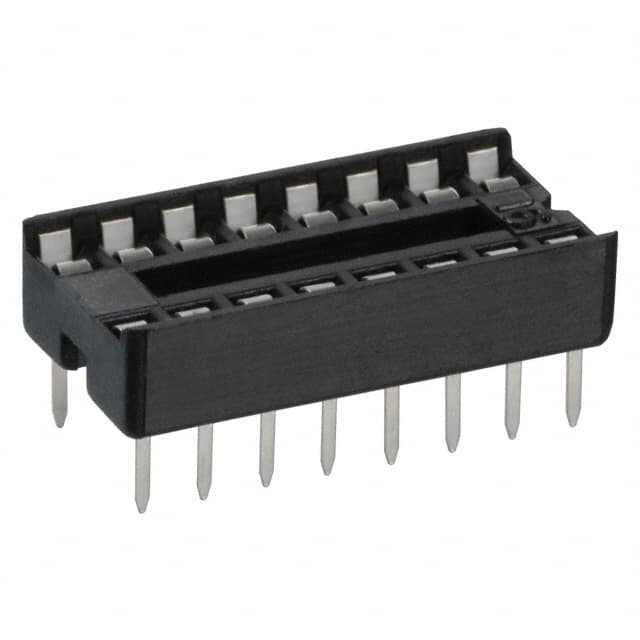

The 3M 4816-3000-CP is a 16-position DIP socket from the 4800 series, featuring stamped and formed dual-wipe contacts for reliable termination. It is designed for through-hole mounting with a 2.54mm pitch and 0.3" (7.62mm) row spacing.
Electrically, the socket is rated for 1A continuous current, with an insulation resistance of 5,000 MΩ at 500 V DC and a withstanding voltage of 100 V AC for 1 minute. The contacts are made of phosphor bronze with a minimum 135 μin matte tin surface plating over a 35 μin nickel underplating.
Mechanically, the socket accepts pin diameters of 0.010" to 0.011" and pin lengths of 0.100" to 0.130". Insertion force is 340 g max per contact, and withdrawal force is 80 g min per contact. The housing is glass-filled polyester with UL 94V-0 flammability rating, and the operating temperature range is -25°C to 85°C. The socket is suitable for wave solder processes only, with a maximum temperature of 260°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
| 10+ | $0.68 | $0.68 |
| 25+ | $0.62 | $0.62 |
| 100+ | $0.54 | $0.54 |
| 250+ | $0.50 | $0.50 |
| 1,000+ | $0.47 | $0.47 |
| 2,500+ | $0.40 | $0.40 |
| 5,000+ | $0.37 | $0.37 |
| 10,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 16 positions arranged in a 2x8 configuration.
The pitch is 2.54mm (0.100").
The current rating is 1 A.
The withstanding voltage is 100 V AC for 1 minute.
It is a through-hole mounting socket with solder termination.
The operating temperature range is -25°C to 85°C.
