Mfr Part #:

4802.2300

Name: 4802.2300
Brand: Schurter Inc.
SKU: 4802.2300

Mfr Name: Schurter Inc.

Description:

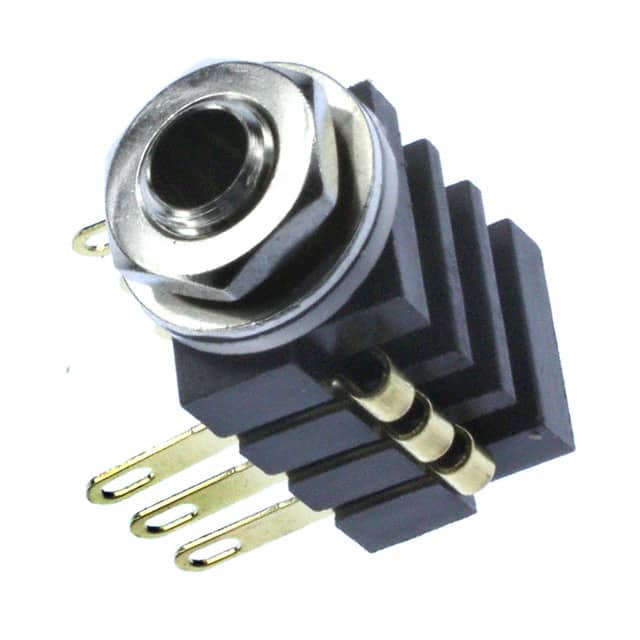

CONN JACK STEREO 3.5MM R/A

Stock on Request

4802.2300 Description

Short technical summary and product information.

CONN JACK STEREO 3.5MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

4802.2310

Schurter Inc.

CONN JACK STEREO 3.5MM R/A

Category	Audio Connectors
Manufacturer Name	Schurter Inc.
Actual Diameter	0.146" (3.70mm)
Connector Type	Phone Jack
Features	Mounting Hardware, Thread Lock
Gender	Female
Industry Recognized Mating Diameter	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s)	Three Switches
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	3 Conductors, 6 Contacts
Operating Temperature	-20°C ~ 70°C
Shielding	Unshielded
Signal Lines	Stereo (3 Conductor, TRS)
Termination	Solder Eyelet(s)
