| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ L-N) | |
| Dielectric Strength (Minimum @ L/N-PE) | |
| Filter Type | |
| Housing Material | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| SVHC Present | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| current_rating (Nominal @ IEC) | |
| current_rating (Nominal @ UL/CSA) |

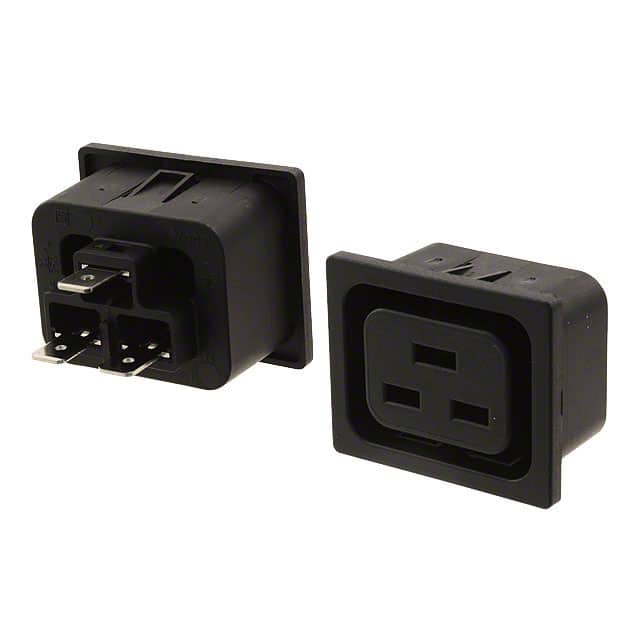

The Schurter 4797.0015 is an IEC 320-2-2/J appliance outlet receptacle designed for panel mount snap-in installation. It features 3 female socket positions and quick connect 0.250" (6.3mm) terminals. The housing is made of black thermoplastic rated UL94 V-0. This unfiltered commercial-grade outlet is rated for 16A at 250VAC per IEC and 20A at 250VAC per UL/CSA. Dielectric strength is 2.5 kVAC between line and neutral and 3 kVAC between line/neutral and protective earth. The operating temperature range is -25°C to 70°C. It is suitable for protection class I equipment and is compatible with V-Lock, P-Lock, and Twylock locking systems. Approvals include CCC, cURus, and ENEC.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.36 | $4.36 |
| 10+ | $3.48 | $3.48 |
| 50+ | $3.30 | $3.30 |
| 100+ | $3.15 | $3.15 |
| 250+ | $2.94 | $2.94 |
| 500+ | $2.81 | $2.81 |
| 1,000+ | $2.67 | $2.67 |
| 2,500+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 A per IEC and 20 A per UL/CSA at 250 VAC.
250 VAC.
Panel mount, snap-in.
3 positions.
-25 °C to 70 °C.
