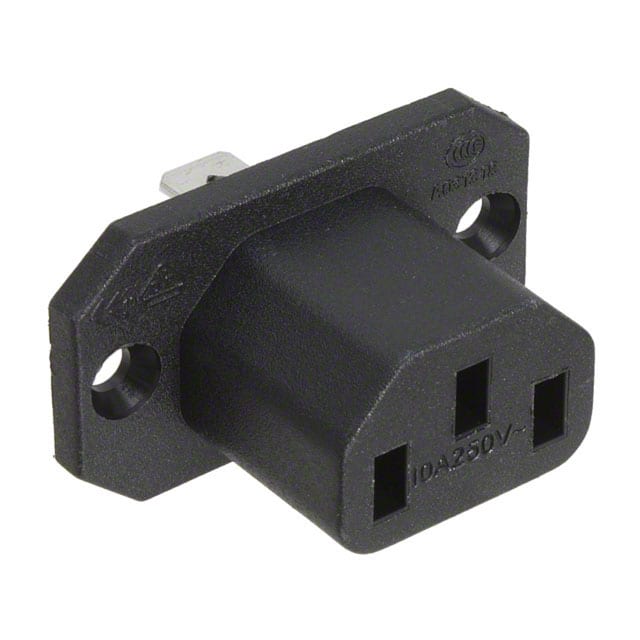

4787.1000 Schurter 4787.1000 is a panel mount IEC 320-2-2/F receptacle with female sockets, rated 15A at 250VAC (UL/CSA) and 10A at 250VAC (IEC). Features solder terminals, IP30 front side protection, and a thermoplastic UL94 V-0 housing.
Mfr Part #:

4787.1000

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Schurter 4787.1000 is a panel mount IEC 320-2-2/F receptacle with female sockets, rated 15A at 250VAC (UL/CSA) and 10A at 250VAC (IEC). Features solder terminals, IP30 front side protection, and a thermoplastic UL94 V-0 housing.
✓ Total Stock: 2 pcs
$ Price Range: $2.33 - $3.61

4787.1000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4787.1000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Filter Type
Housing Material
Industrial Grade
Ingress Protection
Material Flammability Rating
Mounting Type
Number of Positions
Panel Cutout Dimensions
Panel Thickness
SVHC Present
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

4787.1000 Description

Short technical summary and product information.

The Schurter 4787.1000 is a panel mount IEC appliance outlet conforming to the IEC 320-2-2/F standard. It accepts a 3-position female socket configuration and is designed for screw-on mounting from the front side of a panel with thickness up to 3 mm.



Electrical ratings are 15 A at 250 VAC under UL/CSA and 10 A at 250 VAC under IEC with a dielectric strength greater than 2 kVAC between L-N and between L/N-PE. The operating temperature range is -25°C to 70°C.



The connector offers solder terminals and a mounting screw torque of max 0.5 Nm. It is rated IP30 for front side protection and is suitable for Protection Class I applications. Housing material is black thermoplastic with a UL94 V-0 flammability rating. This part is unfiltered (commercial grade) and does not accommodate a fuse.

4787.1000 Quick Information

Product Type: Power Entry Module
Series: 4787
Canonical Name: Schurter 4787.1000 IEC 320-2-2/F Panel Mount Receptacle
Subcategory: IEC Connectors

4787.1000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4787.1000 Estimated Pricing

Qty Low High
1+ $3.61 $3.61
10+ $3.07 $3.07
25+ $2.74 $2.74
100+ $2.60 $2.60
500+ $2.33 $2.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

4787.1000 Features

  • IEC 320-2-2/F standard compliant receptacle.
  • Rated 15 A at 250 VAC (UL/CSA).
  • Panel mount with screw-on front side.
  • Solder terminal connections.
  • Thermoplastic housing UL94 V-0 rated.

4787.1000 Applications

  • Panel mount AC input for power supplies.
  • Industrial equipment power entry modules.
  • Test and measurement instrument power entry.
  • Medical device power input (non-critical).

4787.1000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 4787.1000?

10 A under IEC ratings and 15 A under UL/CSA ratings, both at 250 VAC.

What voltage rating does this connector support?

250 VAC under both IEC and UL/CSA standards.

How is this part mounted to a panel?

It uses screw-on mounting from the front side and fits panel thickness up to 3 mm with a mounting torque of max 0.5 Nm.

What IP rating does the front side have?

IP30 per IEC 60529.

What is the operating temperature range?

-25°C to 70°C.

Does this part have a fuse holder?

No, it does not accommodate a fuse.

What housing material is used?

Black thermoplastic with a UL94 V-0 flammability rating.
