| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength | |
| Filter Type | |
| Housing Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Pin Temperature | |
| Protection Class | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Rating (Nominal @ UL, CSA) | |
| current_rating (Nominal @ IEC) | |
| current_rating (Nominal @ UL/CSA) | |
| voltage_rating (Nominal @ IEC) |

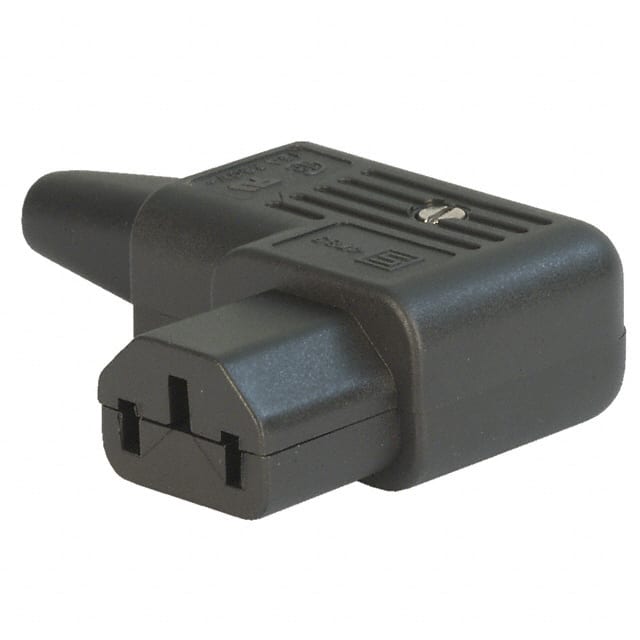

The Schurter 4785.0000 is a rewireable IEC 320-C13 appliance outlet designed for cable mounting. It features a right-angle configuration with screw terminals, enabling easy field wiring. The connector houses 3 female socket positions and is rated for 10A at 250VAC (IEC 60320-1) and 15A at 250VAC (UL 498 / CSA C22.2 no. 42).
Electrical isolation is ensured by a dielectric strength greater than 2 kVAC between line-neutral and line-neutral-to-ground. The operating temperature range spans -25°C to 70°C, with a pin temperature rating of 70°C. The housing is made of black thermoplastic with a UL94 V-0 flammability rating, suitable for use in protection class I applications per IEC 61140.
This unfiltered commercial-grade connector is suitable for power supply cords and equipment requiring a detachable C13 outlet. Approvals include CCC, cULus, and VDE, confirming compliance with major international safety standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.04 | $10.04 |
| 10+ | $8.57 | $8.57 |
| 20+ | $8.03 | $8.03 |
| 50+ | $7.65 | $7.65 |
| 100+ | $7.27 | $7.27 |
| 200+ | $6.73 | $6.73 |
| 500+ | $6.62 | $6.62 |
| 1,000+ | $6.29 | $6.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 4785.0000 is rated for 10A at 250VAC per IEC 60320-1 and 15A at 250VAC per UL 498 and CSA C22.2 no. 42.
It is a free hanging (in-line) connector with a right-angle orientation, secured with screw terminals.
RoHS status is listed as RoHS3 compliant but is unverified. Confirmation should be obtained from the manufacturer.
