| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
188 pcs
|
188 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Body Material | |
| Cable Entry Angle | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Current Rating | |
| Filter Type | |
| Flammability Rating | |
| Fuse Accommodated | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Protection Class | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Wire size | |
| current_rating (Nominal @ UL/CSA) | |
| current_rating (Nominal @ VDE) |

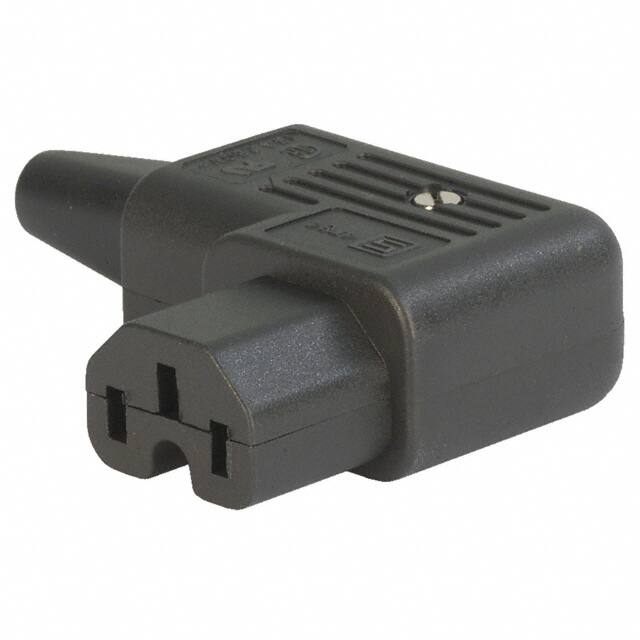

The Schurter 4784.0000 is an IEC 320-C15 power entry plug designed for rewireable connections. It features female sockets in a 3-position configuration, with a right angle cable entry (90°) for space-saving installations. The plug is rated for 10A under VDE and 15A under UL/CSA standards at 250VAC, making it suitable for a variety of commercial and industrial applications.
Constructed with a PA6 body (UL94 V-0 rated) and brass contacts, the 4784.0000 offers robust durability. It accepts a maximum wire size of 1.0 mm² and uses screw termination for secure wiring. The free hanging (in-line) mounting style, combined with the right angle cable entry, allows for flexible routing in tight spaces.
This plug is unfiltered (commercial grade) and is approved by cULus and VDE. It operates in temperatures up to 120°C and is classified as Protection Class I. The 4784 series from Schurter is part of the PLUG MATES rewireable family, with enhanced captive internal contacts for easier assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.16 | $8.16 |
| 10+ | $8.07 | $8.07 |
| 20+ | $6.50 | $6.50 |
| 50+ | $6.19 | $6.19 |
| 100+ | $5.89 | $5.89 |
| 200+ | $5.52 | $5.52 |
| 1,000+ | $5.24 | $5.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10A (VDE) and 15A (UL/CSA).
250 VAC.
Free Hanging (In-Line), Right Angle.
Screw.
UL94 V-0.
120 °C.
