| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Diameter | |
| Function | |
| Gear Reduction Ratio | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Motor Type | |
| Power | |
| RPM | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

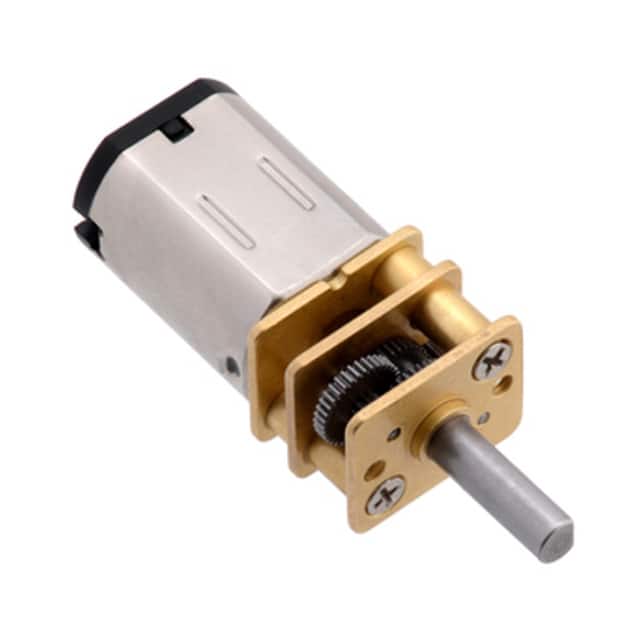

This miniature brushed DC metal gearmotor from Pololu Corporation, part number 4782, operates at 6V and features a 15:1 gear reduction ratio. It is part of the Medium-Power (MP) series, utilizing precious metal brushes for reliable performance.
The gearmotor provides a no-load speed of 1400 RPM with a no-load current of 70 mA. Under stall conditions, it has an extrapolated stall torque of 0.20 kg-cm (2.8 oz-in) and a stall current of 0.67 A. The gearbox has a cross-section of 10x12 mm, and the D-shaped output shaft is 9 mm long and 3 mm in diameter. Termination is via quick connect.
This gearmotor is suitable for applications requiring moderate torque and speed. Its compact size and metal gearing make it durable for various robotic and automation projects. The MP 6V designation indicates a medium-power rating with precious metal brushes, offering a balance of performance and longevity.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.95 | $23.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 6V DC.
The gear reduction ratio is 15:1.
It uses a brushed motor.
It features a quick connect termination style.
The no-load speed is 1400 RPM.
The stall torque is 0.20 kg⋅cm (2.8 oz⋅in).
