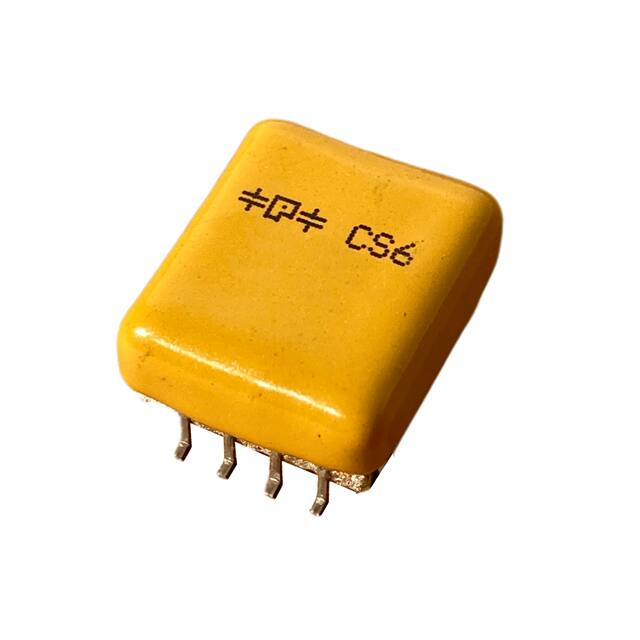

474K500CS6G The ITW Paktron 474K500CS6G is a 0.47µF, 500V film capacitor with metallized polyester dielectric, surface mount package, and low ESR for high-frequency applications.
Mfr Part #:

474K500CS6G

Available from 1 distributors
Mfr Name: ITW Paktron
ITW Paktron
The ITW Paktron 474K500CS6G is a 0.47µF, 500V film capacitor with metallized polyester dielectric, surface mount package, and low ESR for high-frequency applications.
✓ Total Stock: 256 pcs

474K500CS6G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
256 pcs
On Request
256 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

474K500CS6G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
ESR (Equivalent Series Resistance)
Features
Height
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Storage Temperature
Tape & Reel
Termination
Tolerance
Voltage Rating
Width
View Similar Products (0)

474K500CS6G Description

Short technical summary and product information.

The ITW Paktron 474K500CS6G is a Capstick series metallized polyester film capacitor designed for surface mount applications. It offers a capacitance of 0.47µF with a voltage rating of 500V DC and 160V AC. The capacitor features low ESR (11 mΩ) and is suitable for high pulse and DV/DT environments.



This capacitor is ideal for EMI and RFI suppression circuits, as well as high-frequency switching power supplies and DC-DC converters. The metallized polyester dielectric provides self-healing properties and reliable performance. Operating temperature range is -55°C to 125°C.



The package is an 8-SMD Gull Wing with a lead spacing of 15.00mm. Dimensions are 15.90mm length, 17.80mm width, and 8.10mm height. The termination is Gull Wing for surface mount assembly.

474K500CS6G Quick Information

Product Type: Film Capacitor
Series: CS6
Canonical Name: ITW Paktron 474K500CS6G Capstick Film Capacitor, 0.47µF, 500V, ±10%, Surface Mount
Subcategory: Metallized Polyester Film Capacitor

474K500CS6G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 4
REACH Status: Non-Compliant

474K500CS6G Features

  • 0.47µF capacitance with ±10% tolerance.
  • Rated for 500V DC operation.
  • Low ESR of 11 mΩ for high frequency.
  • Surface mount 8-SMD Gull Wing package.
  • Operating temperature range -55°C to 125°C.

474K500CS6G Applications

  • Ideal for EMI and RFI suppression circuits.
  • Suitable for high pulse and DV/DT applications.
  • Used in switching power supplies and DC-DC converters.
  • High temperature applications up to 125°C.

474K500CS6G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value?

0.47 µF.

What is the voltage rating?

500V DC and 160V AC.

What is the dielectric material?

Polyester, Metallized.

What is the tolerance?

±10%.

What is the package type?

8-SMD, Gull Wing.

What is the operating temperature range?

-55°C to 125°C.

What are the intended applications?

EMI, RFI Suppression; High Pulse, DV/DT.
