| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,069 pcs
|
2069 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| Capacitance | |
| Current | |
| ESD Protection | |
| Filter Order | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Tape & Reel | |
| Technology | |
| Type | |
| Values | |
| Voltage | |
| Width |

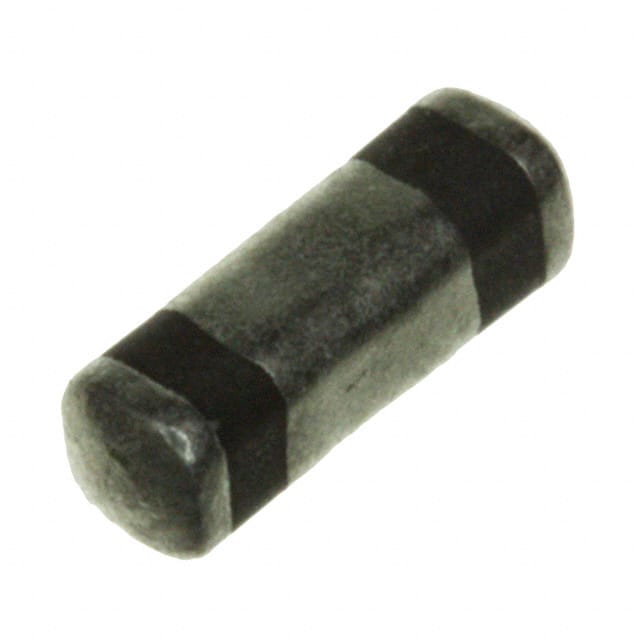

The 4700-008MLF is a third-order LC (Pi) low pass EMI/RFI filter designed for general purpose signal filtering applications. It provides 52dB of typical attenuation at 100MHz, making it suitable for suppressing high-frequency noise in power and signal lines.
The filter is rated for 10A continuous current and 100V operating voltage. It uses a single channel configuration with an inductance of 0.1µH and capacitance of 4000pF per section. The component operates over a temperature range of -55°C to 125°C.
This surface-mount filter is packaged in a pill, square form factor measuring 8.00mm in length, 2.29mm in width, and 2.41mm in height. The compact package is suitable for space-constrained PCB layouts in industrial, automotive, and consumer electronics.
The LC (Pi) topology provides effective broadband filtering with a steep roll-off characteristic. This filter is appropriate for general purpose EMI suppression where moderate attenuation and high current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.41 | $2.41 |
| 2,000+ | $2.41 | $2.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The filter provides 52dB typical attenuation at 100MHz.
The filter is rated for 10A current and 100V voltage.
The filter operates from -55°C to 125°C.
The filter comes in a surface-mount pill, square package measuring 8.00mm x 2.29mm x 2.41mm.
The filter is marked as RoHS3 compliant, though this is unverified.
