| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| Capacitance | |
| Current | |
| ESD Protection | |
| Filter Order | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Tape & Reel | |
| Technology | |
| Type | |
| Values | |
| Voltage | |
| Width |

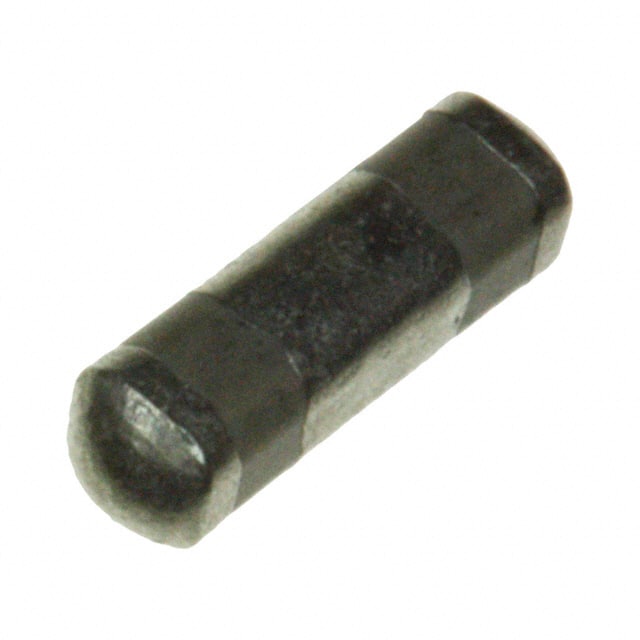

The CTS-Frequency Controls 4700-006MLF is a 3rd order LC (Pi) low pass filter designed for general purpose EMI/RFI filtering applications. It combines a 0.1µH inductor and 100pF capacitor in a single surface mount package (Pill, Square form factor). The filter provides 3 dB attenuation at 100 MHz, making it suitable for suppressing high-frequency noise in power and signal lines.
Electrically, the filter supports a rated current of 10 A and a rated voltage of 100 V, with an operating temperature range of -55°C to +125°C. The single-channel configuration provides a simple, effective filtering solution without ESD protection (not required for this part).
The component is housed in a compact surface mount package measuring 8.00 mm x 2.29 mm x 2.41 mm, suitable for automated assembly. The device is listed as RoHS3 compliant and MSL 1 (unlimited floor life), though these compliance claims are unverified from the source data.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.24 | $3.24 |
| 10+ | $2.87 | $2.87 |
| 50+ | $2.83 | $2.83 |
| 100+ | $2.47 | $2.47 |
| 500+ | $2.46 | $2.46 |
| 2,000+ | $2.46 | $2.46 |
| 4,000+ | $2.19 | $2.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 100 V.
It comes in a Pill, Square surface mount package.
The operating temperature range is -55°C to +125°C.
It is listed as RoHS3 compliant, but compliance is unverified from the source data.
Attenuation is 3 dB at 100 MHz.
The filter is 3rd order.
No, ESD protection is not included.
