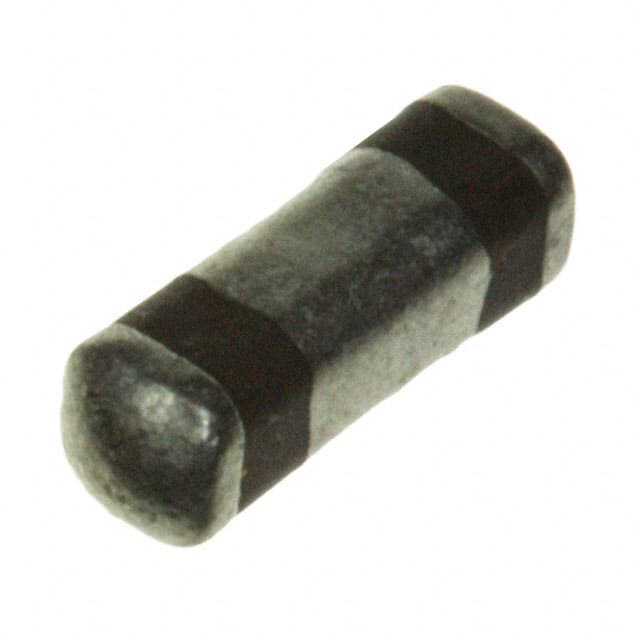

4700-003MLF Low Pass LC (Pi) EMI/RFI filter with 45dB attenuation at 100MHz, rated for 10A and 100V. Surface mount package in a pill, square form factor.
Mfr Part #:

4700-003MLF

Available from 2 distributors
Mfr Name: CTS-Frequency Controls
CTS-Frequency Controls
Low Pass LC (Pi) EMI/RFI filter with 45dB attenuation at 100MHz, rated for 10A and 100V. Surface mount package in a pill, square form factor.
✓ Total Stock: 3,992 pcs
$ Price Range: $3.02 - $5.93

4700-003MLF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,996 pcs
On Request
1996 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,996 pcs
On Request
1996 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4700-003MLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Current
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Tape & Reel
Technology
Type
Values
Voltage
Width
View Similar Products (0)

4700-003MLF Description

Short technical summary and product information.

The 4700-003MLF is a 3rd order low pass LC Pi filter designed for EMI/RFI suppression in general purpose applications. It provides 45dB typical attenuation at 100MHz, making it effective for filtering high-frequency noise. The filter is rated for 10A continuous current and 100V DC voltage, suitable for power line filtering.



The component values are 0.1µH inductance and 2000pF capacitance. It operates over a wide temperature range of -55°C to 125°C. The surface mount package is a pill, square form factor measuring 8.00mm x 2.29mm x 2.41mm. This filter is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).

4700-003MLF Quick Information

Product Type: LC Pi Filter
Canonical Name: LC (Pi) Low Pass EMI/RFI Filter, 3rd Order, 10A, 100V, Surface Mount
Subcategory: LC (Pi) Filter

4700-003MLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4700-003MLF Estimated Pricing

Qty Low High
1+ $5.93 $5.93
10+ $4.40 $4.40
50+ $3.95 $3.95
100+ $3.49 $3.49
500+ $3.28 $3.28
2,000+ $3.02 $3.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

4700-003MLF Features

  • Low pass LC Pi filter topology.
  • 45dB typical attenuation at 100MHz.
  • Rated for 10A continuous current.
  • 100V DC voltage rating.
  • Surface mount pill, square package.

4700-003MLF Applications

  • Used for EMI/RFI filtering in power supply lines.
  • Suitable for general purpose noise suppression.
  • Ideal for high current DC applications.

4700-003MLF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the 4700-003MLF?

100V

What is the package/case of this filter?

Pill, Square (surface mount)

What is the operating temperature range?

-55°C to 125°C

Is the 4700-003MLF RoHS compliant?

RoHS3 Compliant (unverified)

What is the attenuation at 100MHz?

45dB typical

What is the current rating?

10A

What is the filter order?

3rd order
